FLIR TA72 Current Probe, AC, Rogowski Coil Adapter, 3kA ac AC Max, Voltage Output, Токоизмерительные клещи

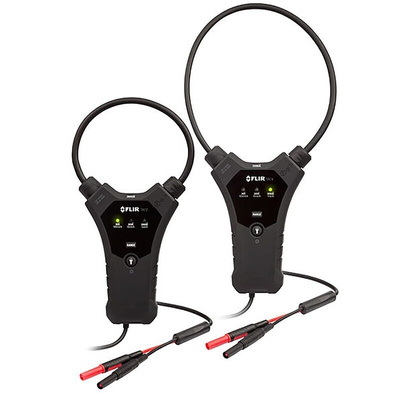

FLIR TA72 Flex Current Probe

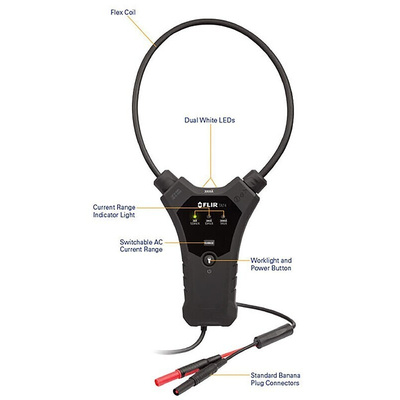

FLIR TA72 Universal Flex Current Probe features a 10inch long narrow flexible coil clamp and locking mechanism. which lets you easily take measurements in tight or awkward spots. The TA72 can measure up to 3000A AC. It is portable and lightweight and features dual-LED work lights that will illuminate dark cabinets.

The TA72 has a standard banana plug connection and the output is a voltage signal. Compatible with most Digital Multimeters and clamp meters, regardless of brand.

Features and Benefits

• Bright, dual LED work lights provide built-in illumination for dark cabinets


• Take accurate measurements in tight or awkward spots


• Snake the coil around obstacles with ease, in deep crowded cabinets


• Measure multi conductors and targets with limited clearance


• Switchable AC current range: 30 A, 300 A, 3000 A


• Compatible with most DMMs and clamp meters


• Standard banana plug connectors fit most meters


• AC voltage output enables wide compatibility


• Flexible Coil Length: 10" (25.4 cm) for easy manoeuvrability


• Easy inspection and navigation


• Rugged design drop-tested to 3 m


• Portable, compact and lightweight

Standards

EN61010-1, EN61010-2-032, EN61326-1

Approvals

CE, UL

TA72 Datasheet

TA72 Flex Current Probe User Manual
