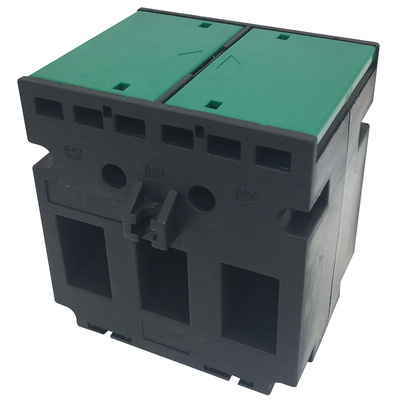

XN25-185031S000000, Sifam Tinsley Omega Series Base Mounted Current Transformer, 100A Input, 100:5, 5 A Output, 31mm Bore, Трансформатор тока

Sifam OMEGA 3 Phase Current Transformers

OMEGA 3 Phase current transformers are suitable for primary ranges from 60 A to 630 A with 5 A secondary. The current transformers allow faster installation directly next to the moulded case circuit breakers for optimised use of space.

Features and Benefits

• Wire sealable terminal covers
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm
• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1
