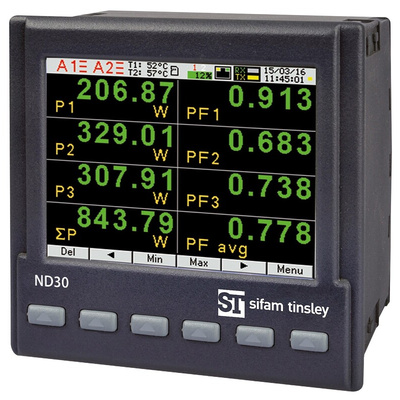

Sifam Tinsley ND30 Power Meter
The ND30 is a digital programmable power meter designed for the measurement of single phase 2-wire and 3 phase 3 and 4-wire power network parameters. The parameters measured are for balanced or unbalanced systems. Multiples values are measured and displayed on a large full-colour TFT screen. The value of each measured value shown on the meter can be transmitted to the master system via RS485 or Ethernet interface.
Features and Benefits
• 3.5” TFT full-colour LCD display
• Measurement and recording of 54 power network parameters, including current and voltage harmonics up to 51st
• Indications include the values of programmed ratios
• Memory of minimum and maximum values
• Programmable VT and CT ratio for Medium and low voltage applications
• 2 Programmable configurable alarm outputs
• Optional: analogue output 0/4-20 mA and 2 pt 100 inputs
• Data archiving in the internal memory 8 GB (optional)
• Digital output RS485 Modbus protocol
• Modern and user-friendly Ethernet interface 10/100 Base-T
• Free configuration and monitoring software available (1 meter license)
• Battery backup RTC
• IP65 protection (from front window)
