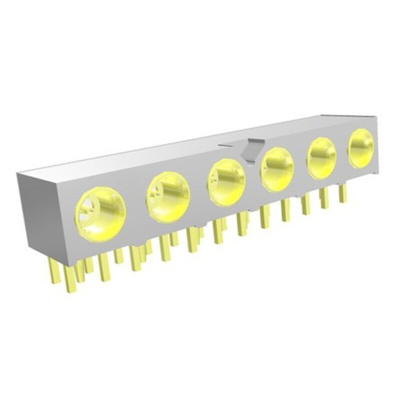

GRF1-J-P-06-E-RA-TH1, Samtec GRF1-J Series, jack PCB Mount MMCX Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

Samtec Ganged PCB Mount MMCX Jacks

From Samtec, a series of ganged micro-mini MMCX PCB mount jacks. The 50ohm micro-miniature connectors are typically used in communication applications from DC to 6 GHz. Ideal for use where board space is restricted. They feature a Snaplock design allowing for 360° rotation when mated. The MMCX ganged jacks in this range are available in different number of ways in both straight and right angled. Mates with GRF1-P MMCX cable assemblies, typical part number 123-6824

Features and Benefits

Multiple number of jack options
Reliable snap together connection
Micro miniature size

Applications

WiFi
PCMCIA Cards
GPS
GPS Receivers
Antennas

Samtec MMCX

6 way MMCX PCB Mount jack drawing
