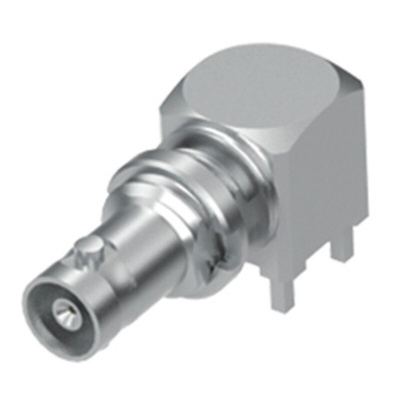

HDBNC-J-P-gN-RA-BH1, Samtec HD-BNC Series, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body, Разъем

Samtec 75 Ω BNC PCB Mount Jacks

From Samtec, a series of HD (high density) 75 Ω BNC jacks. The BNC jacks feature the traditional quarter turn bayonet coupling mechanism of standard BNCs but in a reduced size. Increasing the component board population up to 4 x. Part numbers ending in EM and TH offer extended performance of 0-12GHz, and RA versions 0-6GHz. BNC connectors are available in straight and right angled versions.

Features and Benefits

Extended performance for EM and TH versions
20% weight reduction of conventional BNCs
Compact size, increased board population.

Applications

Instrumentation
Broadcast
Security
Telecom

Samtec BNC Range

BNC right angle PCB jack through hole drawing
