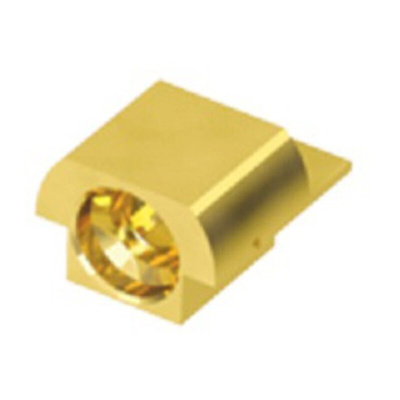

SMP-PL-P-hh-ST-EM3, Samtec, Plug PCB Mount SMP Connector, 50Ω, Edge Mount Termination, Straight Body, Разъем

Samtec 50 Ω SMP PCB Mount Plugs

From Samtec, a series of 50 Ω SMP PCB mount plugs. The SMP plugs have gold plated centre contacts and a PTFE insulator. The SMP plugs feature a snap together coupling providing a secure and reliable connection. Full detent connectors have positive locking with maximum retention. Limited detent connectors have positive locking with medium retention. Smooth bore connectors have positive locking with low retention. The compact design makes these SMP PCB mount connectors ideal for space limited applications requiring high frequency solutions.

Features and Benefits

Frequency range DC to 40 GHz
Compact size
Snap-on coupling

Applications

Broadband
Antennas
Instrumentation
Military

Samtec SMP Series

SMP plug PCB limited detent edge mount drawing
