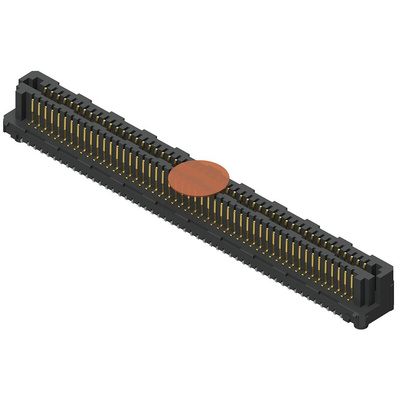

LSEM-120-03.0-L-DV-A-N-K-TR, Samtec, Razor Beam LSEM, 40 Way, 2 Row, Straight PCB Header

1236902
Номер производителя: LSEM-120-03.0-L-DV-A-N-K-TRПроизводитель: Samtec
Цена за шт.
721.92 руб. *
Количество 10+ 50+ 100+ 250+
Цена 612.48 руб. 541.44 руб. 487.68 руб. 432.00 руб.

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Samtec LSEM Series 0.8 mm High-Speed Board-to-Board Hermaphroditic SMT Strip Connectors

LSHM Series 0.8 mm high-speed, high density vertical and right angle mounting hermaphroditic SMT board to board strips with a slim, row to row ruggedized design. The self-mating design of these hermaphroditic high-speed board-to-board connectors reduces inventory costs. These LSHM 0.8 mm high-speed board-to-board connectors feature high retention razor beam contacts which are designed to produce high speed, fine pitch, rugged interconnections. The contacts feature undercut retention notches for an increased mating and unmating force and produce an audible click when a secure connection has been made.
The vertical mounting connectors can be combined with one another to create stack heights from 6 mm to 12 mm for increased design flexibility.

Features and Benefits

High speed, high density configuration
Slim ruggedized design
Hermaphroditic design reduces inventory costs
Razor beam contacts for reliable high-speed electrical connections
High mating/unmating force
Different mating heights for design flexibility

Applications

These LSHM series 0.8 mm board-to-board hermaphroditic connectors are suitable for use in high speed, high density parallel, perpendicular and coplanar systems.

0.8mm Board to Board - Samtec

Техническая спецификация
pdfLSEM Series Vertical Hermaphroditic BTB Strip - Drawing
pdfLSEM Series High-Speed Hermaphroditic Strip - Catalogue Page
pdfRazor Beam Hermaphroditic Interfaces
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
40
Количество рядов:
2
Концевая заделка:
Solder
Материал контактов:
Phosphor Bronze
Номинал тока:
1.8A
Ориентация корпуса:
Straight
Покрытие контактов:
Gold
Серия:
Razor Beam LSEM
Система соединителя:
Board to Board
Тип монтажа:
Surface Mount
Шаг:
0.8mm
