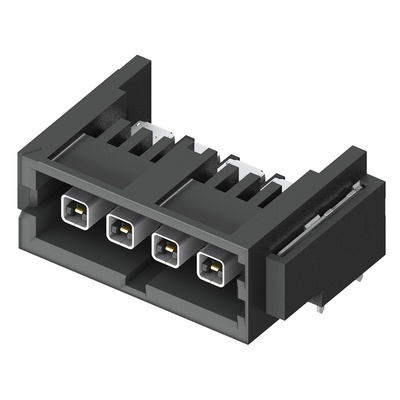

IP5-04-01-L-S-RA1-TR, Samtec, IsoRate IP5, 4 Way, 1 Row, Right Angle PCB Header

1236939
Номер производителя: IP5-04-01-L-S-RA1-TRПроизводитель: Samtec
Цена за шт.
5043.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Samtec IP5 Series 4.00 mm 50 Ω High Isolation Board-to-Board, Wire to Board RF Plug Strips

IP5 series 50 Ω high isolation board-to-board, wire-to-board RF plug strips with a contact pitch of 4.00 mm and a BTB stack height of 10 mm. These IP5 4.00 mm RF plug strips are part of the IsoRate high isolation interconnect system with a performance of up to 9.5 GHz, 19 Gbit/s. The IsoRate interconnect system features rugged Edge Rate contacts which are able to achieve high isolation at a lower cost than traditional screw-machined RF contacts. These IP5 series high isolation RF plug connectors are available in single and double row configurations with up to 8 jacks per row. Part numbers ending in 'L-TR' are IP5 wire-to-board RF plug strips with a cable latch.
These IP5 4.00 mm RF plug connectors mate with IJ5 RF jack connectors for board-to-board applications and IJ5C high isolation RF cable assemblies for wire-to-board applications.

4.00mm Wire to Board and Board to Board - Samtec

Техническая спецификация
pdfIP5 Series 50 Ohm Right Angle RF Plug PCB Connector - Drawing
pdfIP5 Series 50 Ohm High Isolation RF Plugs - Catalogue Page
pdfISO Rate High Isolation Interconnect System
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
4
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
2.3A
Ориентация корпуса:
Правый угол
Покрытие контактов:
Золото
Серия:
IsoRate IP5
Система соединителя:
Board to Board
Тип монтажа:
Сквозное отверстие
Шаг:
4.0mm
