88981123, Crouzet em4 Series PLC CPU, PWM, Relay Output, 12 (Digital/Analogue), 4 (Digital)-Input, Analogue, Digital Input, ПЛК

Crouzet PLC CPU

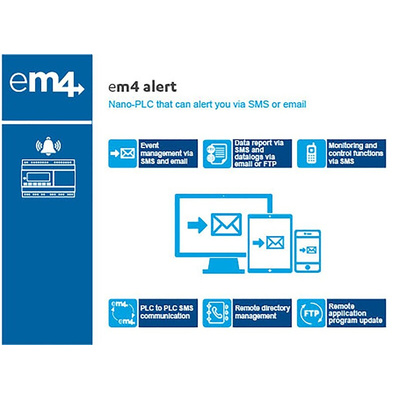

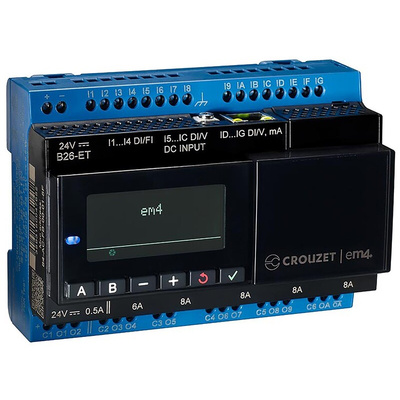

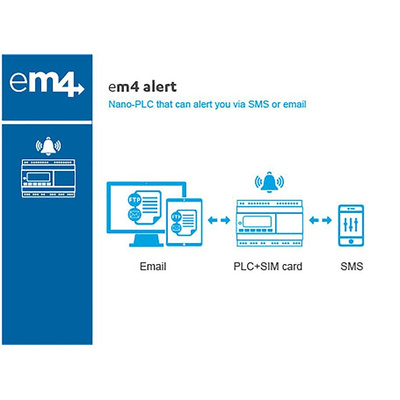

The Crouzet em4 series alerts B26-3GS nano programmable logic controller (PLC) has 16 digital inputs (including 4 High Speed, 8 analogues 0-10V/potentiometers and 4 analogues 0-10V/4-20mA) and 10 digital outputs ((including 2 solid states 0.5A PWM, 2 relays 6A and 6 relays 8A). It has a supply voltage rating of 24Vdc. This nano-PLC communicates via text, email or FTP. It is easy to set up any device with em4 soft. It only needs a GSM network to start or to operate (SMS) via a basic SIM card. It provides a fully secured solution as only users identified in the PLC can interact and it has up to 20 recipients.

Features and Benefits

Connect your equipment to the GPRS 2G/3G network in any geographical location (worldwide)
4 lines with 18 characters per line with high visual display
Large memory space for application and remote functions program
Data report via text message
Data log via email or FTP
Simple monitoring and control via text messaging
Remote directory management
Remotely update the application program via FTP
Operating temperature ranges between -20°C and 60°C

Applications

Industrial automation
Robotics
Automobile industry

Certifications

CE
cULus listed
IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001/108/EC EMC directive
IP40 on front panel
IP20 on terminal block

em4 Selection Guide

Datasheet

em4 Brochure

Crouzet Recycling Notice
