88981126, Crouzet em4 Series PLC CPU, PWM, Relay Output, 12 (Digital/Analogue), 4 (Digital)-Input, Analogue, Digital Input, ПЛК

Starter Kit em4 Alert B26 24V dc-2GS

The best nano-PLC for communicating via text, email or FTP. The Crouzet starter kit em4 alert 3G comes with the very compact and easy to program nano-PLC with 26 I/Os. With the Crouzet em4 Alert 3G manage, control, survey and update your application remotly via Text, Email or FTP communication. Very easy to setup device thanks to unique and intuitive program - em4 soft. Only needs GSM network to start operate (SMS) via a basic SIM card. Fully secured solution as only users identified in the PLC can interact, up to 20 recepients.

Highly accurate 4-20mA analogue inputs for industrial sensors
4 lines with 18 characters per line with highly Visual display
Large memory space for application and remote funtions program

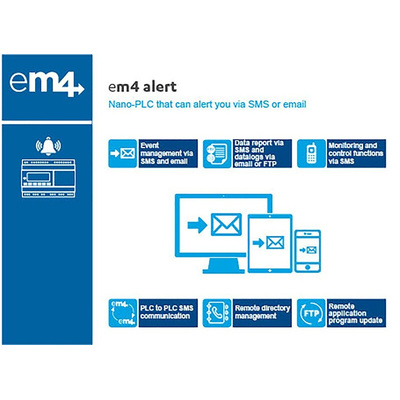

Event management by text message or email
Data report via text message data log via email or FTP
Simple monitoring and control via text messaging
Communication between logic controllers via text messaging
Remote directory management
Remotely update the application program via FTP

em4 Alert Starter Kit Includes:

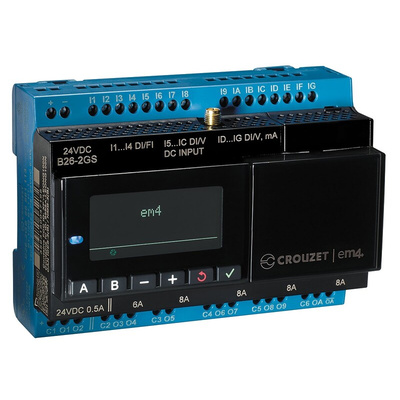

em4 alert nano-PLC CPU
Standard 3m wireless antenna (818-7152)
em Soft USB stick software (818-7177)
USB interface in either black (818-7133)
3m USB programming cable (818-7168)
em4 soft (USB Key)

Standards

CE, cULus Listed, IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001E/108/EC EMC Directive

Crouzet em4

em4 Selection Guide

Datasheet

em4 Brochure

Crouzet Recycling Notice
