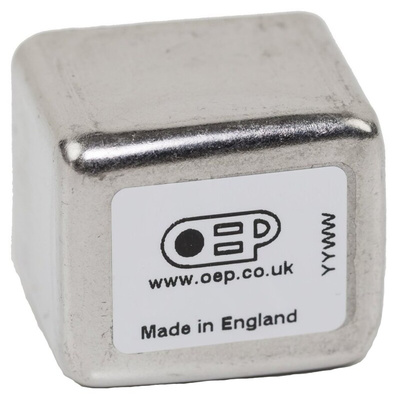

A187A16C/1, OEP Through Hole Audio Transformer 10 kΩ, 49 kΩ

OEP A187A16C/1 Microphone Transformers

A187A16C/1 microphone transformers from OEP have been designed for matching low output moving coil pickups to balanced valve pre-amplifiers. These audio transformers are ideal for impedance matching and signal splitting. A low distortion core enables low harmonic distortion while multi-layered winding enables improved coupling and reduces leakage inductance.

500uV maximum input voltage
640 mH nominal primary inductance tolerance at 1 kHz, 0.1 V
430 μH typical primary leakage inductance at 1 kHz, 0.1 V
35 pF interwinding capacitance at 20 kHz, 0.1 V (screens earthed)
10 Hz to 30 kHz ±0.5dB frequency response

Note

Do not pass DC through windings.

OEP PCB Coil Step Up Transformer 1 CT:7+10 Datasheet
