RS PRO 0.75kVA Site Transformer, 230V ac Primary, 230V Secondary, Трансформатор

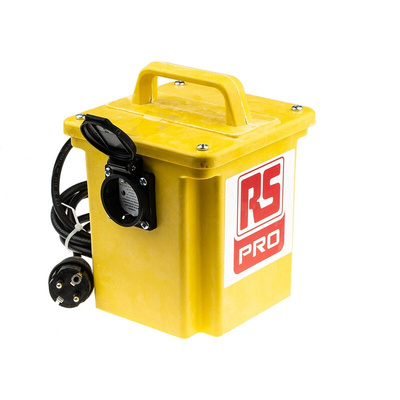

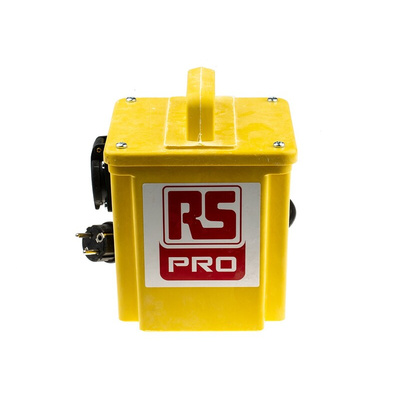

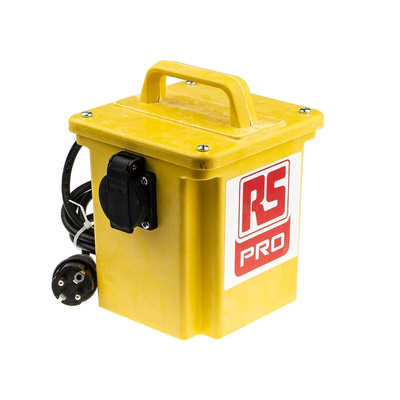

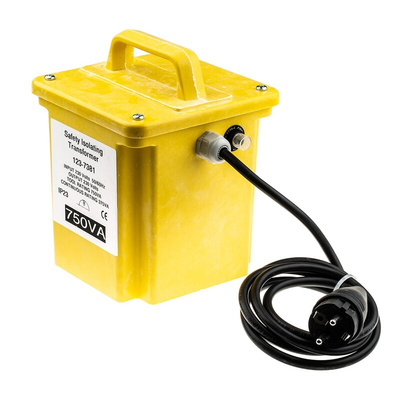

RS PRO, 0.75 kVA Isolation Transformer, 230 V AC

This reliable isolation transformer is part of the RS PRO range. It's commonly used with power tools in industrial settings.

It's designed with your safety in mind as the transformer has a thermal-magnetic trip on it that prevents it from overloading. This means it stops you from receiving an electrical shock and isolates any tools that are connected to the main power supply. It's suitable for applications where a European 230 V voltage supply needs to be isolated.

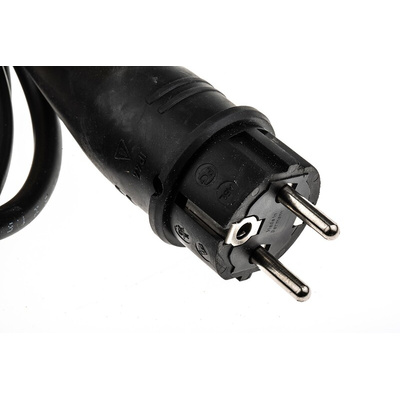

It has a functional design that makes it lightweight, yet robust. The casing is made from GRP (glass fibre-reinforced polyester) that means it's strong while keeping it portable. It's also fitted with a 16 A Schuko plug.

This product conforms to BSEN 61588 standards, complying with reduced low-voltage regulations for your safety. What's more, it can be easily reset by hand

Features and Benefits

• Portable isolation transformer
• 5-minute short time
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 230 V
• Power rating of 0.75 kVA
• 2 x 16 A output current
• Schuko plug and socket type
• Weight of 10 kg
• Dimensions of 195 mm x 195 mm x 265 mm
• Operating frequency range of 50 - 60 Hz
• Portable mounting
• BS EN 61558, BS EN 61558-20-23, BS EN 60529, RoHS Directive 2011/65/EU

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Portable Isolation Transformer Datasheet

Declaration of Conformity
