RS PRO 750VA Site Transformer, 230V ac Primary, 230V Secondary, Трансформатор

RS PRO, 750 VA Isolation Transformer, 230 V AC

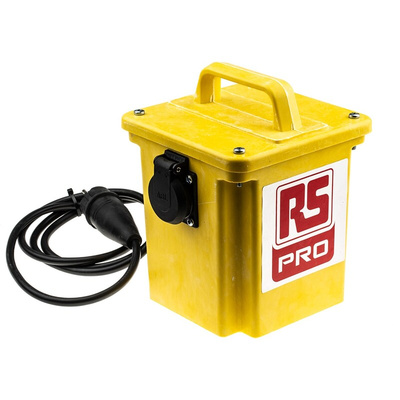

This compact portable isolation transformer from RS PRO is designed for use with power tools on safety sites. It combines a lightweight design with high-quality construction and strict safety standards, including meeting British standards on reduced low voltage.

The risk of electric shock is minimised thanks to a thermal-magnetic trip that's fitted to the separating transformer to reduce the chance of overload. This isolates any power tools you may have connected from the power supply and can be easily reset manually.

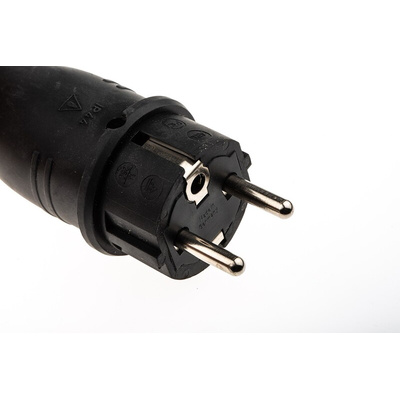

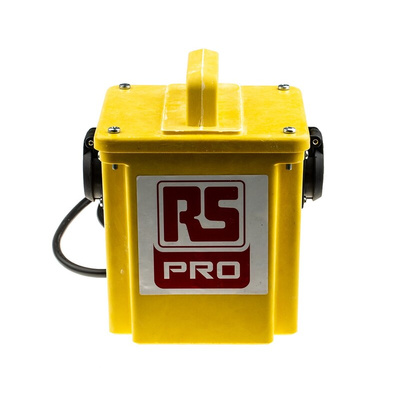

The transformer is fitted with a 16 A Schuko-style plug and encased in a tough housing of GRP (glass fibre-reinforced polyester). It comes with a broad handle on the top for ease of carrying.

Like all of RS PRO's quality transformers, this product has been exhaustively tested to ensure safe and reliable operation. It conforms to BS EN 61558 on the safety of transformers, reactors and power supply units.

Features and Benefits

• Isolation transformer
• Portable mounting
• 5-minute short time
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 230 V
• Power rating of 750 VA
• 2 x 16 A output current

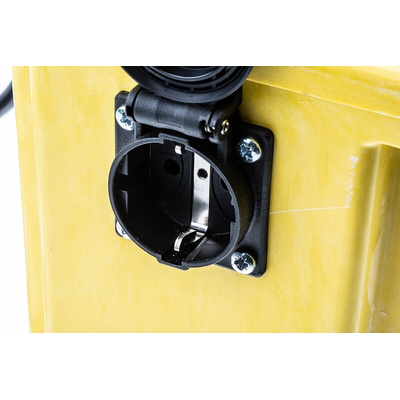

• Schuko plug and socket type
• Weight of 12 kg
• Measures 195 mm x 195 mm x 265 mm
• Operating frequency range of 50 - 60 Hz
• Meets British standards BS EN 61558 and BS EN 61558-20-23 on the safety of transformers, reactors and power supply units
• Meets British standard BS EN 60529 (degrees of protection provided by enclosures)
• RoHS Compliant for restricted use of hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The power rating is 750 VA in continuous use and 1500 VA in intermittent use (5 minutes on, 15 minutes off).

Declaration of Conformity

RS Pro Portable Isolation Transformer Datasheet
