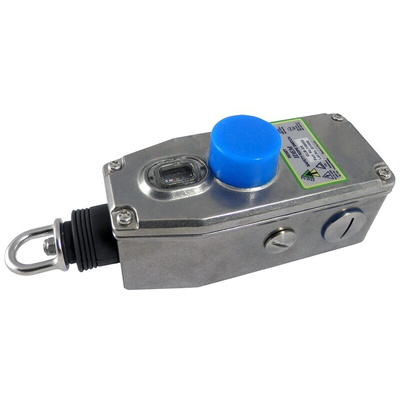

IDEM Guardian Line GLM-SS Mini Safety Rope Pull Switches

The Guardian Line GLM-SS from IDEM is a compact and robust mini safety rope pull switch. It is designed to protect a 30 m conveyor using just a single switch or up to 50 m using two switches. It is available in a choice of 3 or 4 pole contacts to ensure flexibility with all modern control applications.
The GLM-SS has rugged internal sealing bellows and a stainless steel housing which enable it to undergo high-pressure hosing at high temperature.
With a dual channel safety monitoring relay, it can be used as an E-stop and monitored to Category 4 to EN 954-1 or PLe ISO 13849-1.

Features and Benefits

Switch mechanism latches the instant the safety contacts open, ISO13850 standard
Up to 30 m can be covered using only a single switch
Up to 50 m can be covered using two switches
Positive break contacts to IEC60947-5-1
Stainless steel 316 housing
IP69K protection
Rugged integral sealing bellows mean they can be high pressure hosed
All internal screws are stainless steel
Easy to wire with 3 x M20 conduit entries

Applications

The GLM-SS Mini Safety Rope Pull Switch is ideal for the food processing, pharmaceutical, packaging and chemical industries.

Note

Stock nos. 123-7515, 123-7517 & 123-7518 have an E-stop.
Stock no. 123-7519 has an LED.
Stock no. 123-7520 has an E-stop and LED.

Standards

IEC 60947-5-1, IEC 60947-5-5, EN 954-1, EN 62061, UL 508, ISO 13850, ISO 13849-1.

Approvals

CE, cULus, TUV.

Datasheet

Catalogue Page

IDEM GLM-SS Series (MPN 148xxx)
