133006, IDEM LMC Series Magnetic Non-Contact Safety Switch, 24V dc, 316 Stainless Steel Housing, 2NC, 5m Cable, Выключатель

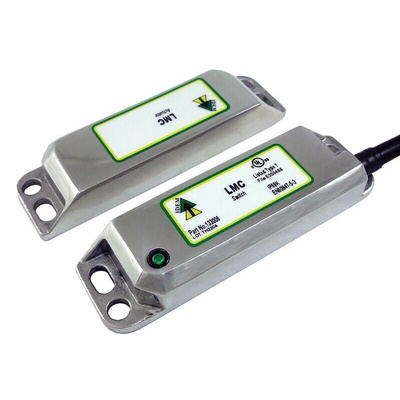

IDEM HYGIECODE LMC Non Contact Safety Switch

The HYGIECODE LMC safety switch has been developed for non-contact interlocking of hinged, sliding or removable guard doors.
It is ideal for applications that require a wide tolerance to misalignment, high switching capacity or high level of hygiene.
When used with a dual channel safety relay, this safety switch can be used to provide up to PLe/Category 4 to ISO13849-1.

Features and Benefits

Coded magnetic actuation
Stainless steel 316 housing mirror polished (Ra4)
High tolerance to guard misalignment
IP67 / IP69K protection
Suitable for CIP cleaning - Food Splash Zones EHEDG Guidelines
Resistant to high temperature hosing and detergent wash down
Up to PLe ISO 13849-1
LED indication
14 mm wide sensing
78 mm fixing centres

Applications

The HYGIECODE LMC Non-contact Safety Switch is designed for use in general factory automation, packaging and some food processing industries.

Note

The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Standards

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508.

Approvals

CE, cULus, TUV.

Supplied with

Actuator.
