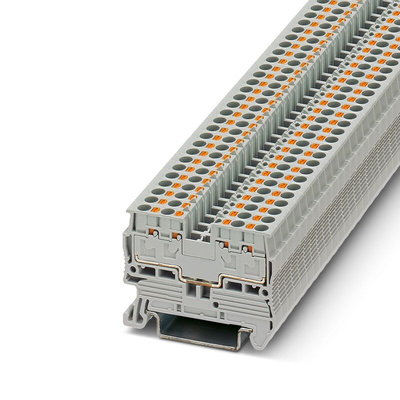

3211019, Phoenix Contact PT 2.5/S-QUATTRO Series Grey Feed Through Terminal Block, 4-Level, Push In Termination

Phoenix Contact Feed-Through Terminal Block, PA Insulation, 6kV Rated Surge Voltage - PT 2,5/S-QUATTRO - 3211019

Set your sights on safety when linking cables to your circuit with this feed-through terminal block from Phoenix Contact. Its four-contact configuration gives you multi-component control over your system and reduces your wiring needs to ensure a neat setup. Thanks to its modular design and open side panel, this piece pairs easily with other terminal blocks in your enclosure. You don't need to dig into your toolbox to connect wires to it, as push-in termination makes installation hassle-free.
Sturdy PA housing does double duty by providing impact resistance and insulation. This means it's safe to use the block in harsh environments, such as the automotive industry. With compact dimensions of 48.6 (H) x 5.2 (W) x 35.3mm (D), it's a space-efficient choice for busy setups. It handles up to 6kV of surge voltage without breaking a sweat, so you can rely on its performance in networks prone to power spikes.

Features & Benefits

• RoHS certified to show it contains only trace amounts of hazardous substances
• Current rating of 17.5A makes it suitable fit for medium-duty applications
• Accommodates wire sizes ranging from 26 to 12AWG for versatility

PT Series

Datasheet

Line Drawing - 3211019
