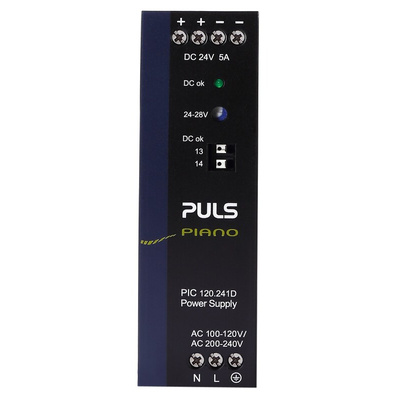

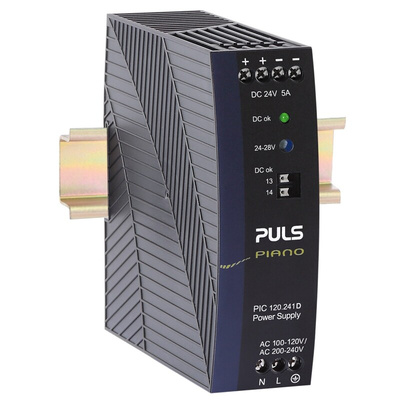

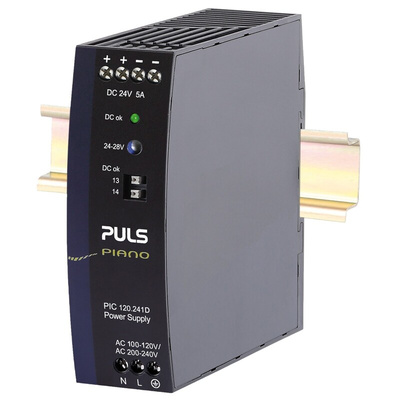

PIC120.241D, PULS PIANO Switch Mode DIN Rail Power Supply with Compact Design, Cost Effective Power Source, DC OK Relay Contact 230V, Блок питания

PIANO Series DIN Rail Power Supply

With the new PIANO series, PULS-quality DIN Rail power supplies are now available for even the most cost-oriented user. Through an innovative approach, the intrinsic properties of a PULS power supply have now been introduced into a product that also has significant price advantages.
Despite low-cost requirements, an MTBF of more than 1.4 million hours and efficiencies of 90.5% to 95.2% have been achieved. This innovation was made possible by a clever single-board design, cost-saving polycarbonate housing and a design team that was focused on an intelligent design for manufacturability.

Features and Benefits

•DC-OK signal with relay (Except PIC120.242C)
•Operational temperature range of up to 55°C (without derating)
•Large input and output terminals all within a light and compact housing
•Efficiency between 90.5 and 95.2% at 230 V
•Made from high quality polycarbonate
•High service lifetime
•High reliability MTBF (Mean Time Between Failures)
•Light and compact
•Single board design increasing processing reliability

Approvals

PIANO DIN Rail power supplies meet the following standards and approvals:
•IEC / UL 60950-1
•UL 508
•EMC Emission EN 55011/022 Class B
•EMC IEC / EN 61000-6-1 / 61000-6-2 / 61000-6-4
•Degree of pollution IEC 62103: 2
•Mechanical Shock IEC 60068-2-27: 30 g 6 ms, 11 ms 20 g
•Vibration IEC 60068-2-6: 2 g

Datasheet
