SV565UTPUL, StarTech.com 1 USB VGA over CATx KVM Extender, 300m

SV565UTPUL HDMI KVM Extender

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is backed by a Startech.com 3-year warranty with free lifetime technical support.

Features & Benefits

• High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
• Kit includes both local and remote units
• Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
• Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
• USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
• Supports auto-switching between host and remote users or dedicated control
• Compatible with CAT 5, 5e, or 6 UTP cabling
• Intuitive hotkey commands
• Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
• Supports most combo keyboard and mouse sets (including Wireless)
• PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
• Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections

Applications

• Control remote machines and security monitoring systems
• Monitor computer-controlled equipment in a factory or warehouse at a distance
• Use one or more servers in a server room from a remote location
• Allow two users to share one PC or KVM

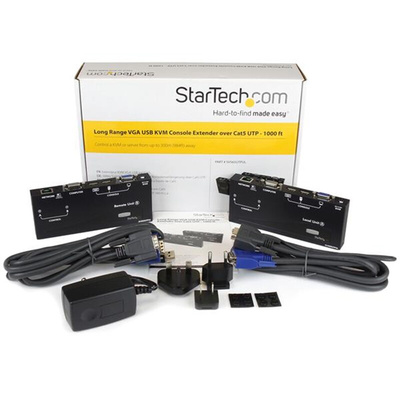

What's in the box?

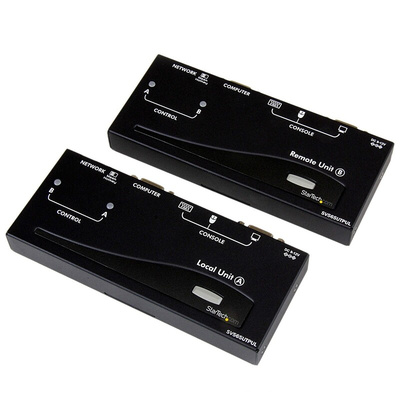

• KVM Extenders (1x Local, 1x Remote)
• 2n1 USB VGA KVM Cables
• Rubber Feet
• Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
• User Manual

KVM Extenders

Datasheet
