SV431DPUA, StarTech.com 4 Port USB DisplayPort KVM Switch, 3.5 mm Stereo 2560 x 1600 Maximum Resolution

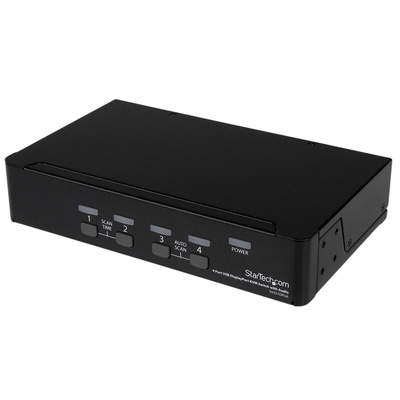

SV431DPUA 4 Port DisplayPort KVM Switch

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Features & Benefits

• 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
• Full plug-and-play support with USB keyboards, mice, and connected peripherals
• Hotkey and push-button switching
• Native DisplayPort resolution of 2560x1600 @60Hz
beyond 1080p
• OS independent - No driver or software required
• Supports a maximum resolution of 3840x2400 at lower refresh rates
• Supports DDC2B for monitor detection
• Supports hot-plug, un-plug and link status-failure detection
• Integrated 2 port USB 2.0 hub
• User-defined scan time intervals
• VESA and CEA compliant
• Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters
• USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
• Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
• Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analogue audio connections for added versatility

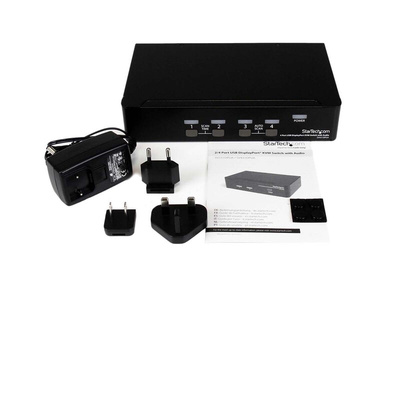

What’s in the package?

• 4-port DisplayPort KVM switch
• Foot pads
• Universal power adapter (NA/UK/EU/AU)
• Instruction manual

FAQs

Can I use any mouse or keyboard with the KVM Switch?
It will depend on the type of mouse or keyboard used. It is advised by the manufacturers to use standard wired 104 key keyboards and a standard wired mouse that does not have additional features. This includes wireless, gaming and Apple keyboards.

SV431DPUA Datasheet
