ST1000SPEXD4 PCIe Network Card

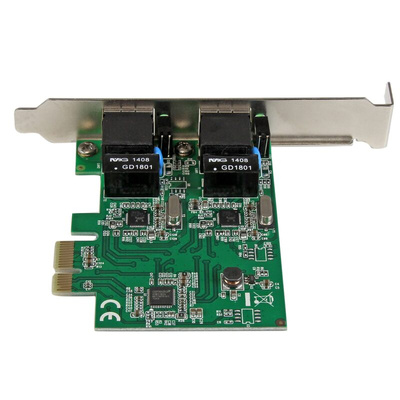

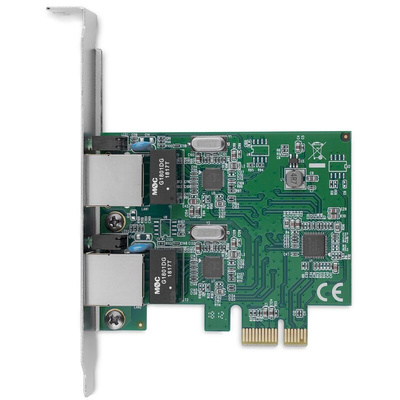

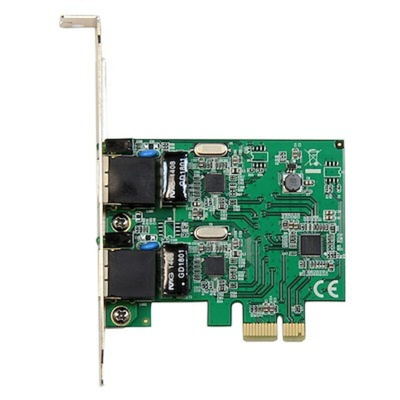

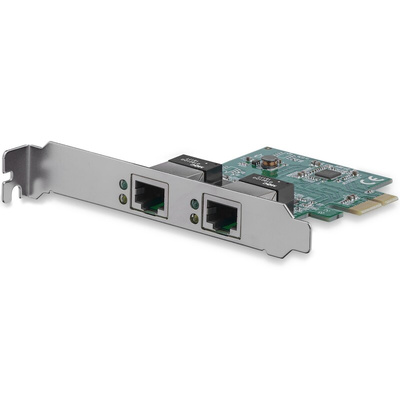

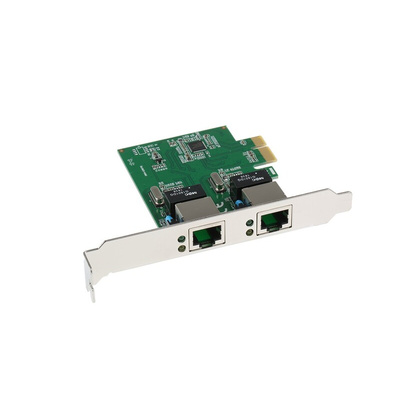

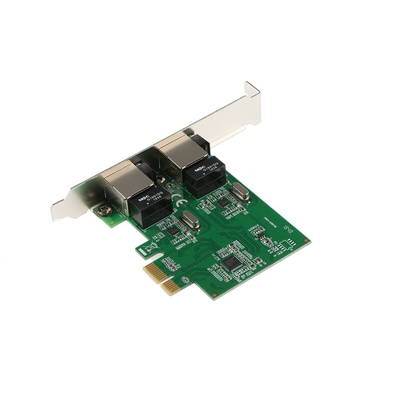

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.

Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

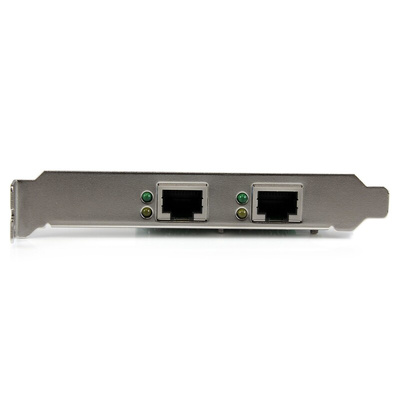

• Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
• Up to 9K Jumbo Frame support
• Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
• Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
• Wake-on-LAN / Remote Wake-up support
• Configured with standard profile bracket, low profile/half-height bracket included
• Supports Pair Swap / Polarity / Skew Correction
• Protect critical networked systems with a redundant and independent Gigabit port
• Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
• Maximize the networking efficiency of your virtualized server, with dedicated ports

Applications

• Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
• Provide redundant connectivity to ensure an uninterrupted network connection
• Configure a dual-homed proxy or gateway system for an added layer of security
• Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available

What’s in the package?

• PCIe Network Card
• Low Profile Bracket
• Driver CD
• Instruction Manual

PCI Express Network Card

ST1000SPEXD4 Datasheet
