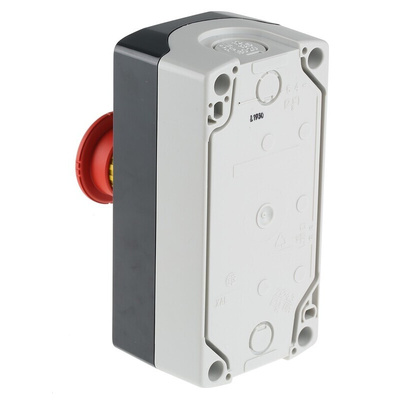

XALD328, Schneider Electric Latching, Spring Return Control Station Switch - 2NO, SPST, Polycarbonate, 3 Cutouts, Black, Red,

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• Comprised of a polycarbonate material
• For XB5 Ø 22 mm control and signalling units

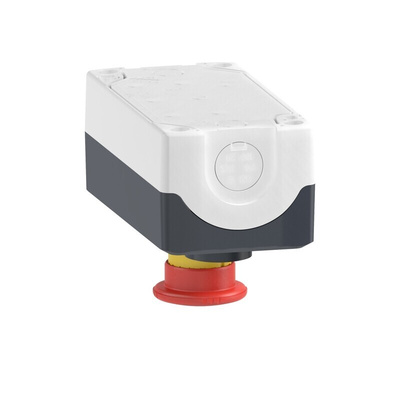

• Cable entry - 1 knock-out for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm

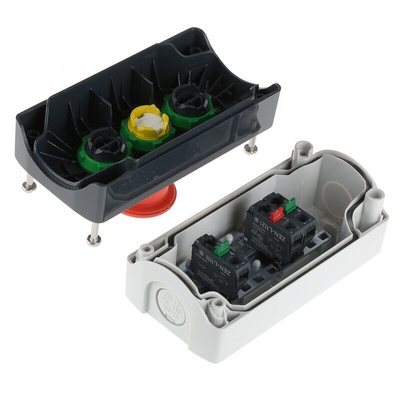

• Stop button fitted with 1 N/C contact block, start button fitted with 1 N/O contact
• IP65 rated
• Double insulated

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.

Note

Stock number 0299398 is not a flush push button it is a Projected Push Button

Schneider Electric Control Station Switch, Screw Terminal Connection Type, 600V AC/DC Maximum Voltage - Harmony XALD Series - XALD328

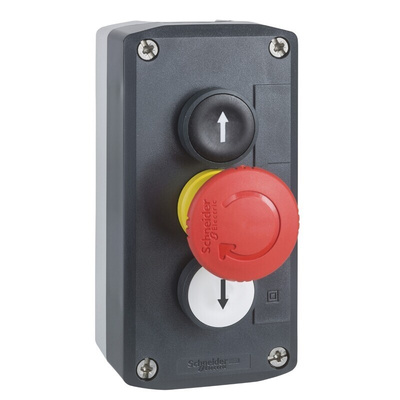

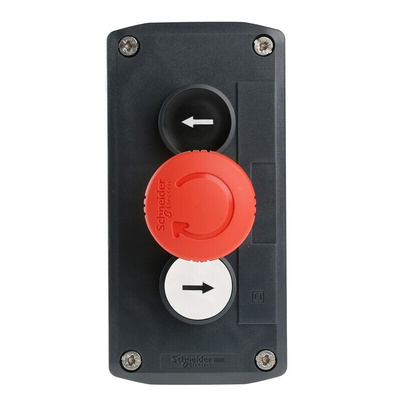

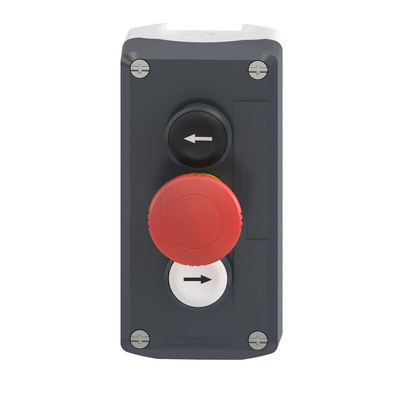

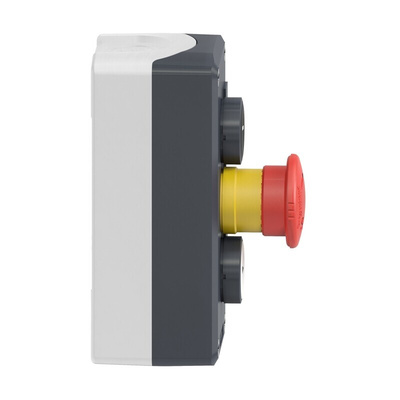

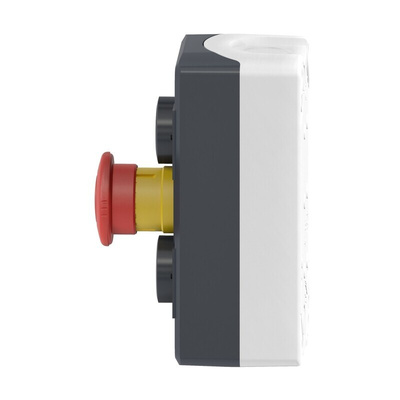

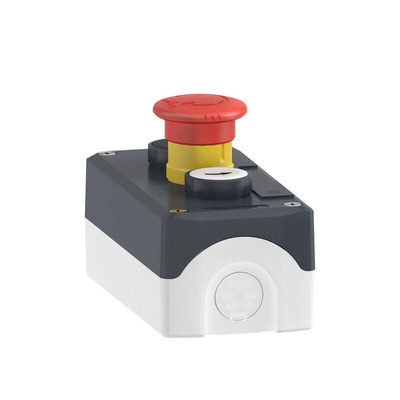

Keep your industrial machinery moving in the right direction with this up/down control station switch from Schneider Electric. Thanks to its impact-resistant polycarbonate housing, it holds its own in tough settings. The three 22mm cut-outs come pre-fitted with push buttons marked with the operational commands for quick and easy set-up. For added safety, the up and down buttons feature spring-return NO contacts, meaning equipment is only activated while a user presses the switch. A latching NC mushroom head button in the centre provides flexible control options, as it remains in the position last selected until you return it manually.

Features & Benefits

• Mechanical durability of 5 million cycles for long-lasting performance
• 6kV impulse withstand voltage rating protects your circuitry in the event of an electrical surge
• Highly conductive silver alloy contacts handle a high 600V supply with ease

Applications

• Chemical processing
• Marine technology
• Automotive equipment

Can I use this device around water?

Yes. An IP69K rating indicates the enclosures stand up to high-pressure, high-temperature jets from all directions. This means you can use this device with confidence in any environment where it's likely to get wet.
