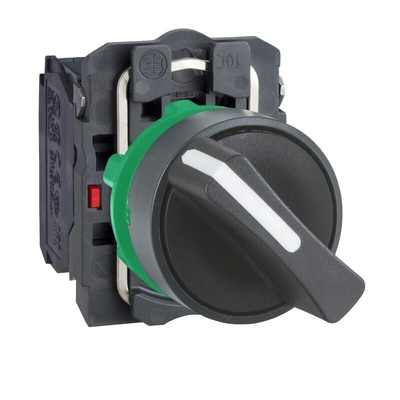

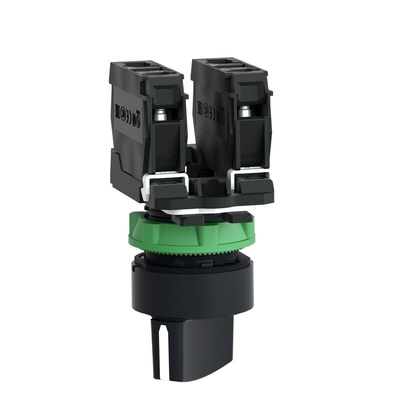

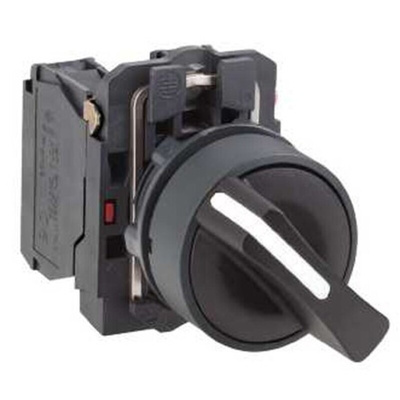

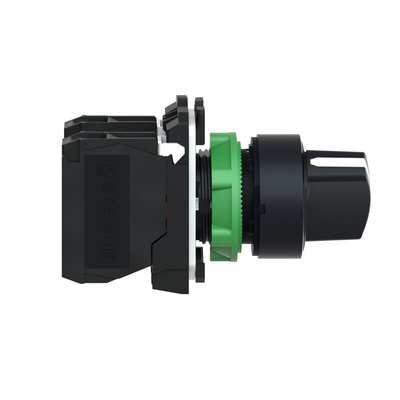

XB5AD25, Schneider Electric Knob Selector Switch - (SPDT) 22mm Cutout Diameter 2 Positions

Schneider Electric 2-Position Selector Switch, 22mm Cutout, 600V AC/DC - Harmony XB5 Series - XB5AD25

Use this selector switch from Schneider Electric as a control device for your equipment. You don't have to repeatedly reset it as you can turn it 90° in two positions and it then stays in position to give continuous use. The knob is made from a strong chromium-plated metal that offers good resistance to wear and corrosion. You'll find the unit easy to mount thanks to its standard cutout diameter of 22mm.

Features & Benefits

• Light weight of 0.043kg for easy mounting and minimal control-panel strain
• Silver-alloy contacts offer effective conductivity for smooth switching
• Water pressure resistance of 7,000,000Pa, preventing moisture damage

Applications

• Building administration
• Computer devices
• Control panels
• Household appliances

What is a slow-break contact?

A slow-break contact like the one this switch uses, which means the contact action directly corresponds to the turning of the switch. It allows for a slight time delay to ensure accuracy in contact action.

How do I power this selector switch?

Connect this selector switch to a power source by fixing it to a terminal. You can attach it using the screw clamps on its rear.
