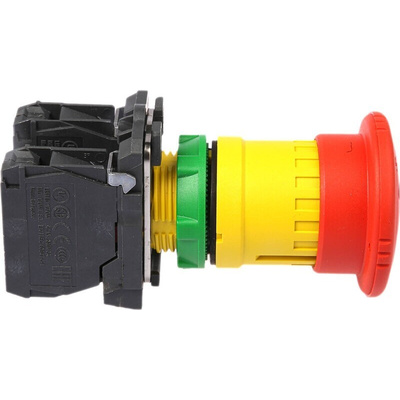

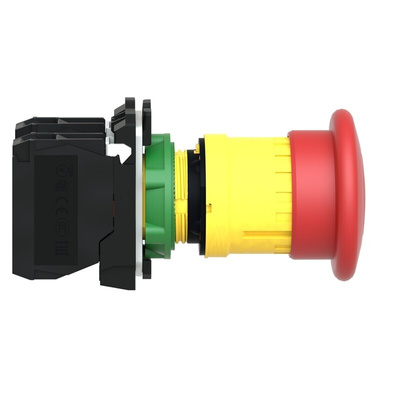

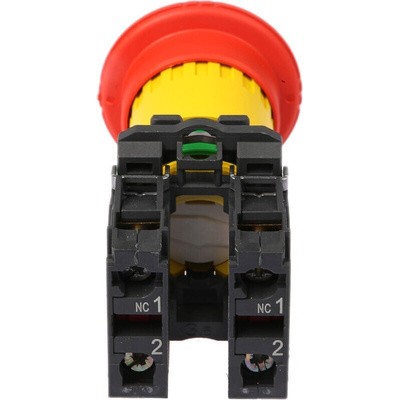

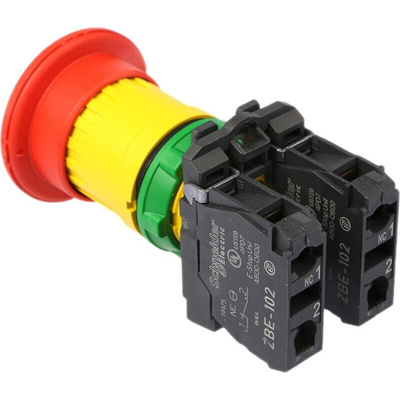

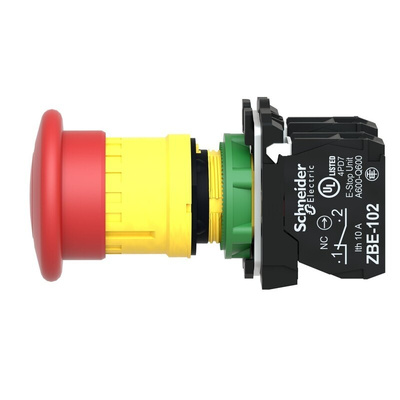

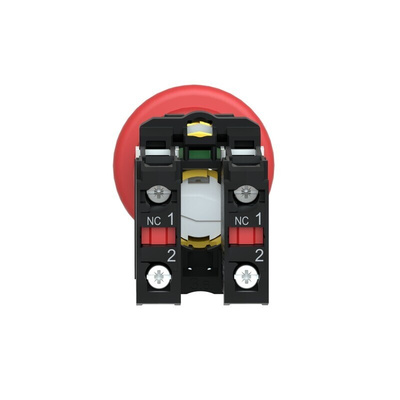

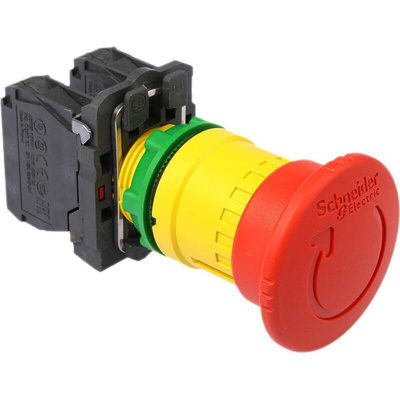

XB5AS8444, Schneider Electric XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP66, IP67,

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

The Harmony XB5 range of modular emergency stop push buttons offers you the reassurance of quality, efficiency and simplicity all in one. Designed with robust, durable material you can use this E-Stop button in a variety of different scenarios and industrial applications.

Features and Benefits

• Strong resistance to chemicals (cleaning agents, alcohol, oils & detergents) offering you the flexibility of area of use for your E-stops
• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel
• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation
• Simple, easy and quick panel mounting installation, saving you time and effort
• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more
• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances
Protection ratings -
• Conformity with IEC, UL, CSA & CCC EAC standards as well as JIS, CE marking (Marine approvals)
• IP 66 rated (Dust-tight, with no ingress of dust + water protection i.e. powerful jets of water)
• IP 67 rated (Push button is protected against short term immersion)
• IP 69 & 69K (E-stop is protected against close-range high pressure, specifically high-temperature spray downs up to 7,000,000 Pa at 55 °C, distance 0.1 m)
• Shock protection as standard, levelling up to IK03 rating
• NEMA 4X & NEMA 13 remarkably resistant to corrosion and severe environments, dust and water

Applications

• Machine & control panels, material handling
• Food/Beverage industries (ideal for use in areas with wash down procedures)
• Commercial applications such as airports, restaurants, office buildings

Schneider Electric Emergency Stop Push Button, 22mm Mounting Diameter, 10A Short-Circuit Protection - Harmony XB5 Series - XB5AS8444

Want to prioritise safety around hazardous equipment? Give this emergency stop push button from Schneider Electric centre stage on your control panel. When you press the mushroom head, the device immediately cuts the power to connected components to safeguard staff in dangerous situations. When the problem has been cleared, just twist the button to restart the process. This push button has an IP66 rating, which means it's dust-tight and resists high-pressure water jets from any direction.

Features & Benefits

• Keeps your setup strain-free thanks to its low weight of 72g
• Durability rating of 300,000 cycles means it's highly reliable
• Tightening torque of 0.8 to 1.2Nm so it's quick and simple to mount by hand
• Withstands impulse voltages up to 6kV for electrical protection
• Bright red and yellow colours are easy to spot in emergency situations

Applications

• Warehousing equipment
• Automotive sector
• Food production

Is this push button suitable for applications in tough environments?

Yes. A wide operating temperature range between -40°C and +70°C means you can trust it works without a hiccup in challenging conditions.
