3GAA132614-BDJ, ABB M3AA Induction AC Motor, 7.5 kW, IE3, 3 Phase, 4 Pole, Flange Mount Mounting

2 & 4 Pole IE3 Flange Mounted Motors

Three phase motors ideal for a wide variety of applications including pumps, fans and process machinery drives.

High efficiency motors to meet IE3 regulations
Comparable to old EFF regulations
Metric frame sizes to Cenelec standards
Class F insulation with class B temperature rise
Top mounted terminal box with metric/Pg type knockouts
Energy efficient low noise design
All motors have keyways and fitted keys
Corrosion resistant, low copper aluminium alloy
Suitable for DOL starting or inverter drive use

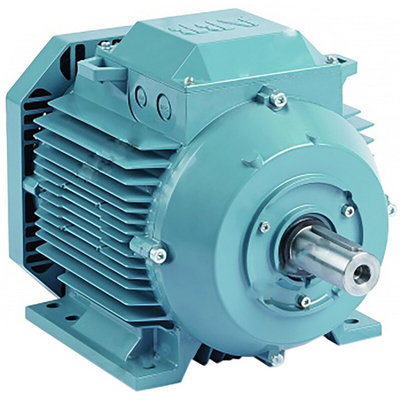

ABB M3AA Induction AC Motor

The ABB M3AA induction 7.5kW 3-phase 4-pole and flange mount AC motor has a current rating of 15.6A. It has a top mount terminal box with metric/Pg type knockouts.

Features and Benefits

• Class F insulation with class B temperature
• Comparable to old EFF regulations
• Corrosion resistant
• High efficiency to meet IE3 regulations
• Keyways and fitted keys
• Low copper aluminium alloy
• Low noise design
• Maximum output torque is 48.9Nm
• Metric frame size
• Output speed is 1462rpm

Applications

• DOL starting
• Inverter drives
• Pumps, fans and process machinery drives

Certifications

• IC411
• ICLF
• IEC 60034-30-1 approved
• IMB5 IM3001
