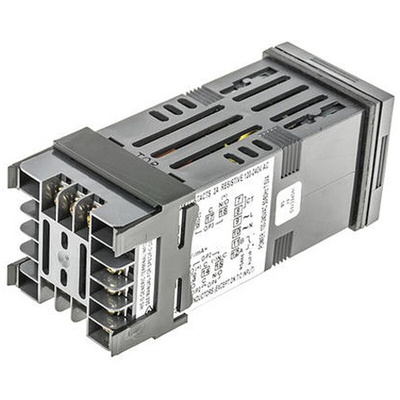

P6100-2-2-1-0-0-0-2, West Instruments P6100+ DIN Rail PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Relay, SSR, 100 → 240 V, Регулятор температуры

West Instruments Temperature Controller

The West Instruments temperature controller is a 1/16 DIN, PID controller from the 6100 series. It is designed to incorporate improvements, saves time, reduces inventory stock and virtually eliminates the likelihood of operator errors. It has versatile features and user-friendly functionalities. These features include remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration and 24VDC transmitter power supply. The 6100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money. It has a thermocouple input, DC for SSR output and a relay output. The controller has an operating supply range from 100VAC to 240VAC.
The West Instruments P6100 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a thermocouple input, DC for SSR output and a relay output. It is designed to incorporate improvements, save time, reduce inventory stock and virtually eliminates the likelihood of operator errors. It has versatile features and user-friendly functionalities. This features includes remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration, as well as 24VDC transmitter power supply. The 6100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money.

Features and Benefits

Red upper and green lower display colour
Adjustable hysteresis
Auto-hardware recognition
Backward compatible panel cut-out, housing and terminal wiring capability
Dual set points with optional remote selection
Expanded user-selectable operator modes
Faster communication speeds and more security options
Improved easy to use HMI
Improved windows PC configuration software
Jumper-less input configuration
Optional 10V SSR driver
Optional analogue remote set point input
Plug in output module allows installing just the functions needed
Process and loop alarms
User-selectable plug-and-play output cards

Certifications

CE certified
IP20 rated
IP66 rated
UL listed
