P8100-2-2-1-1-0-0-2-0, West Instruments P8100+ Panel Mount PID Temperature Controller, 48 x 96mm 1 Input, 3 Output Relay, SSR, 100 →, Регулятор температуры

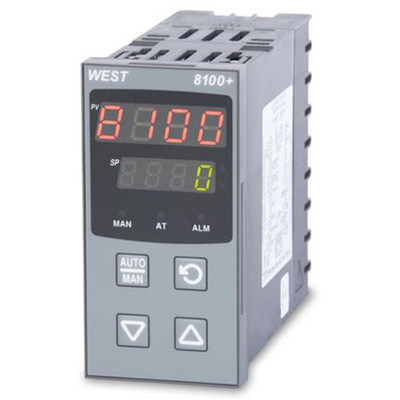

West Instruments Temperature Controller

The West Instruments P8100 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 96mm. It has thermocouple input, 2 DC for SSR output and a relay output. It is designed to incorporate improvements, save time (as much as 50% on product set-up), reduce inventory stock and virtually eliminates the likelihood of operator errors. It has versatile features and user-friendly functionalities. These features include remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration. The 8100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money.

Features and Benefits

Red upper and green lower display colour
Adjustable hysteresis
Auto-hardware recognition
Backward compatible panel cut-out, housing and terminal wiring capability
Dual set points with optional remote selection
Expanded user-selectable operator modes
Faster communication speeds and more security options
Improved easy to use HMI
Improved windows PC configuration software
Jumper-less input configuration
Optional 10V SSR driver
Optional analogue remote set point input
Plug in output module allows installing just the functions needed
Process and loop alarms
User-selectable plug-and-play output cards

Certifications

CE certified
IP20 rated
IP66 rated
UL listed

Datasheet
