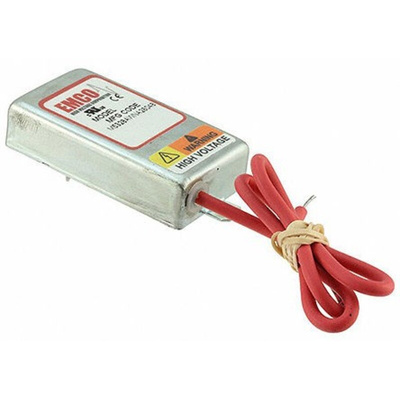

CB101N, XP Power CB DC-DC Converter, -10kV/ 100μA Output, 11.5 → 16 V dc Input, 1W, PCB Mount, +60°C Max Temp -10°C Min

XP Power DC-High Voltage DC Non Isolated CB Series Converters

The CB series converters are miniature, regulated high-voltage power supply. CB converters provide clean reliable high voltage shielded PC mount package. CB Series are ideal for integrating into small, sensitive equipment.

Features and Benefits

• Regulated
• Quasi-Sinewave Oscillator, low noise
• Compact size
• Programmable output 0% to 100%
• High Stability
• 11.5V to 16V Wide input range
• Very Low EMI/RFI
• Reliable
• Case - Plated steel with isolated case ground
• Sealed
• Calibration external gain adjust
• Built in programming voltage - Overvoltage protection
• 5 V reference voltage built in
• Thermal shutdown built in

Applications:

Electrophoresis
Capacitor charging
Field generation
Spectrometry
Deflection plates
Test instrumentation
Image intensifier

Standards

UL, 94V-0, RoHS
