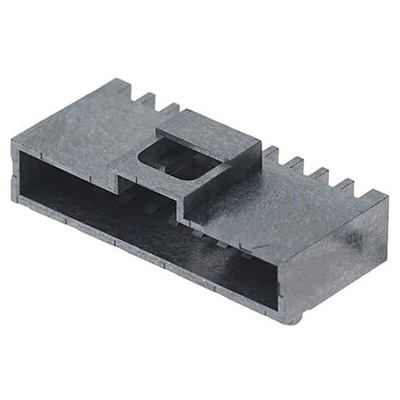

151065-4060, Molex Milli-Grid Series Right Angle Through Hole PCB Header, 10 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded

Molex Milli-Grid 2.0mm Single Row PCB Header Connectors with Positive Lock

Milli-Grid 2 mm Single Row PCB Header Connectors with Positive Lock
Single row Milli-Grid SMT and through hole mount PCB header connectors with a 2mm pitch for wire to board applications. The single row shrouded design of these 2.0mm Milli-Grid PCB headers offers space saving and protects the contacts from damage. These Milli-Grid header connectors feature an integral positive lock for a secure mating connection. Stock numbers 1238473 and 1238476 also feature retention pegs to keep the connector secured to the PCB before soldering
These Milli-Grid 2 mm PCB header connectors mate with the Milli-Grid 2 mm plug and receptacle housing connectors

Features and Benefits

Single row space saving design
Shrouded design protects contacts
Integral positive lock for secure mating connection
Versions with retention pegs to secure connector before soldering

Applications

These Milli-Grid 2 mm PCB header connectors are suitable for wire to board signal applications. Typical applications include data communications, telecommunications, networking and consumer and home appliances

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals

Milli-Grid Single Row Connectors with Positive Lock

Milli-Grid Single Row R/A THT Header,10P - Drawing
