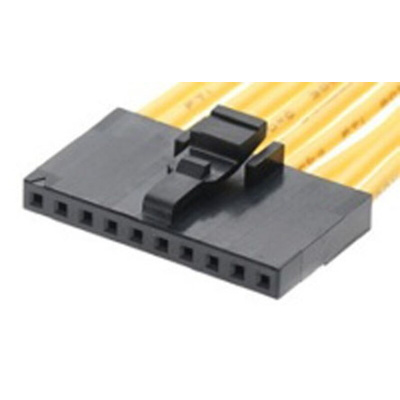

151100-0010, Molex, MILLI-GRID Female Connector Housing, 2mm Pitch, 10 Way, 1 Row, Корпус разъема

Molex Milli-Grid 2.0mm Single Row Connector Housings with Positive Lock

Single row Milli-Grid plug and receptacle connector housings with a 2mm pitch for wire to board and wire to wire applications. The single row shrouded design of these 2.0mm Milli-Grid connector housings offers space saving and protects the contacts from damage. These Milli-Grid connector housings feature an integral positive lock for a secure mating connection. The wide latch-pad surface of the positive lock allows easier connector unmating.
These Milli-Grid 2 mm plug and receptacle connector housings mate with the Milli-Grid 2 mm PCB header connectors

Features and Benefits

Single row space saving design
Shrouded design protects contacts
Integral positive lock for secure mating connection
Wide latch pad surface for easy unmating

Applications

These Milli-Grid 2 mm plug and receptacle connector housings are suitable for both wire to wire and wire to board signal applications. Typical applications include data communications, telecommunications, networking and consumer and home appliances

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals

Milli-Grid Single Row Connectors with Positive Lock

Milli-Grid Single Row Receptacle Housing, 10P - Drawing
