Telemecanique Inductive Sensors
Introducing Telemecaniques XS218B range of M18 inductive proximity sensors which have been created and designed for use within applications within mobile equipment and light hoisting applications where metal detection is required. This range of proximity sensors features 1 threaded cylindrical metal bodies, they're unable to be flush-mounted and have been created and designed for direct current circuit applications.
How do they work and where can I use them?
Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

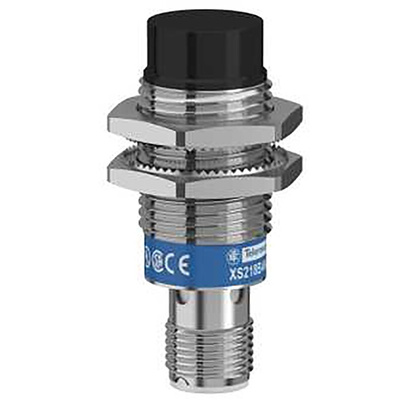

XS218B4PAM12 General Purpose Inductive Proximity Sensor.
- XS2 Sensor.
- Mobile equipment applications
- Cylindrical design (barrel) M18.
- Size 51 mm.
- Fixed body, Non-flush mountable.
- Nickel plated brass, PPS Front.
- Discrete signal, 3-wire.
- Nominal sensing distance 16 mm.
- Output 1 NO, DC circuit, PNP.
- Male connector M12, 4-Pins.
- [Us] rated supply voltage 24 to 24 V dc with reverse polarity protection.
- M18 x 1 thread type.
- 1 LED, yellow output.
- Threaded length 21 mm, Length 51 m, Weight 0.052 kg.
- IP67 to DIN 40050, IP65 to IEC 60529, IP69K.
- CE marked.
Certificates.
- UL, CSA, E2.
Packaging Machines Application Software
Packaging Automation
Datasheet XS218B4PAM12
Green Premium Ecolabel
Brochure
CAD Drawing
Catalogue
