RS PRO Component Tester Component

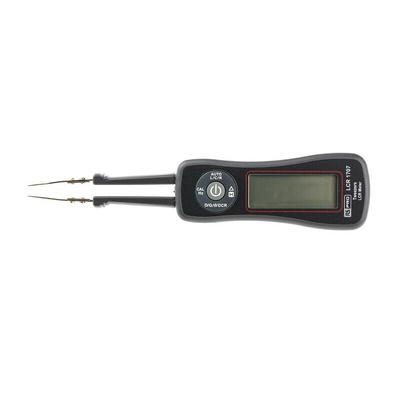

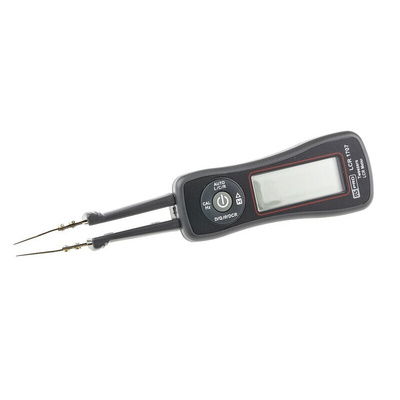

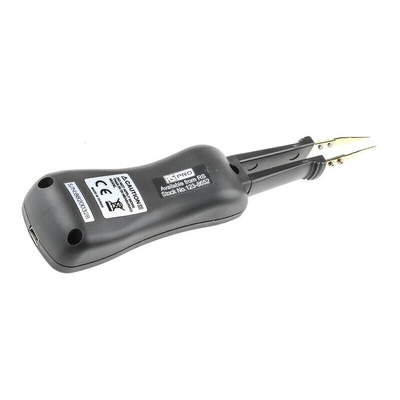

RS PRO LCR 1707 Smart Tweezer LCR Tester

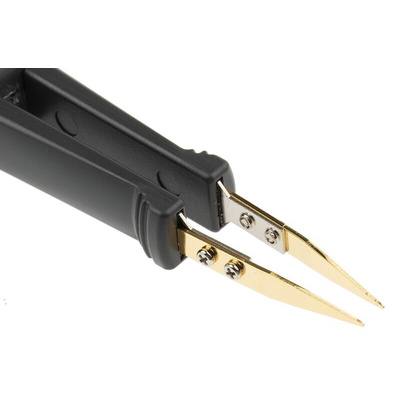

The RS PRO LCR 1707 are great value smart tweezers. This device is like a pair of tweezers but has an LCR meter attached, designed for surface mount components. You use them by putting the components between the tips of the tweezers and it will automatically measure the component on the display.

This component tester offers basic parameters L, C, R, D, Q, Ɵ, EsR and testing frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz.

The RS PRO LCR 1707 is ideal to perform on board measurements and troubleshoot loose components These smart tweezers have some great features including data hold mode, zeroing mode, parallel/serial test mode, self calibration mode, external DC power operation and USB interface making them a must have device for anyone testing components.

Features and Benefits:

• 20 000 count digital display


• Auto selection of LCR testing, auto ranging


• 0.2% basic accuracy capacitance and inductance


• Low battery and overload indication


• Auto Power Off (approximately 10 minutes)


• Tweezers easy testing


• Convenient one hand operation


• Lightweight and portable


• Ideal for use in electronics


• No test leads to get in your way

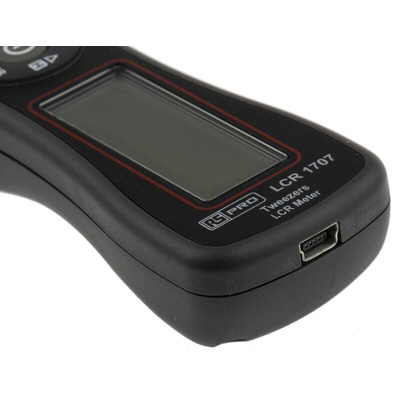

• USB interface


• 3.7 V / 400 mAh Li-ion Battery


• Dimensions 38 x 168 x 23 mm (without holster)


• Weight 70 g (with holster)

Typical Applications

Component & IC Testers are devices used to test ICs (Integrated Circuits) and SMD (Service Mounting Devices) and measure a range of electrical parameters such as voltage, resistance, capacitance, diode, continuity and more. Component & IC testing devices are available in a range of devices, many of which are portable hand held devices. These testers are commonly used in applications such as:

• Production


• Trouble shooting – sort and test loose components


• Maintenance

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.

Note

Power requirement is Li-ion 400 mAh battery or Ext. DC 5 V mini-USB plug

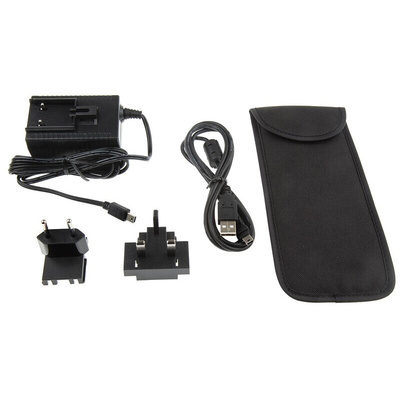

Supplied with

Li-ion battery (installed), flat tip probe, bend tip probe, AC adapter, USB cable, software (on CD-ROM), user manual, carrying case

RS Pro Smart Tweezer LCR Tester

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
