RS PRO CC421-G Current & Voltage Calibrator, Max Voltage +199.9mV dc, Max Current 24mA, Калибратор

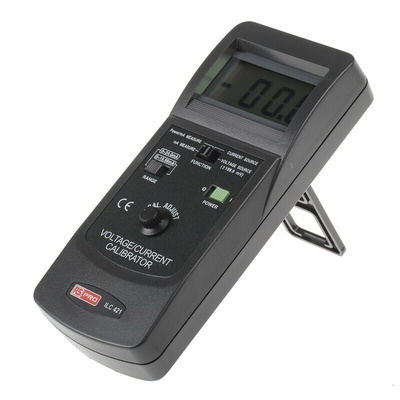

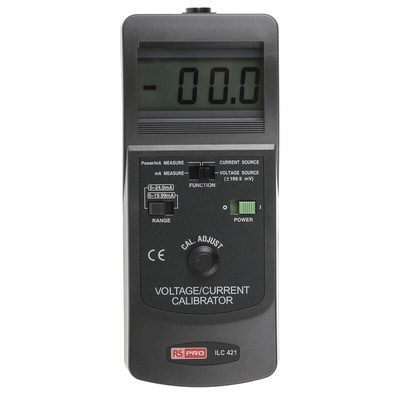

RS PRO Handheld Voltage And Current Calibrator

This precision Handheld Current Loop Calibrator from our own RS PRO brand is primarily used for the calibration and simulation of voltage and current loops. Combined with user friendly controls and simple operations this Current Loop Calibrators is an excellent model for both process engineers and calibration technicians.

Features and Benefits

•High accuracy calibrator incorporating source and measure capabilities
•Compact and lightweight design make it easily portable and ideal for plant operation and field use
•Current calibrator drive loads up to 500 Ω
•Current measurement

General Specifications

•LCD display – maximum display counts 1999
•Digit size – 13mm
•Sampling time – approx. 0.4 seconds
•Power supply – 006P DC 9V, MN1604/PP3 battery or equivalent (alkaline or heavy-duty type)
•Weight – 265g (including battery)

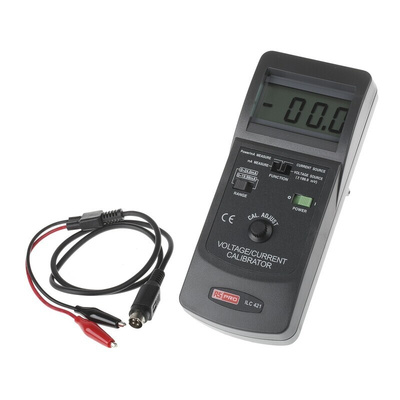

•Operational manual and cable with the alligator pairs included

Function

1.\tCurrent source
2.\tCurrent measurement
3.\tPower and current measurement of two wire loop
4.\tDC mV source

Applications

•Electrical servicing and maintenance
•Laboratories
•Electronic servicing and maintenance
•Industrial automation

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Current Loop Calibrator

The RS PRO handheld current loop calibrator is a portable instrument for calibrating process devices and measuring process signals. The quality and accuracy of the handheld calibrator are covered by the four functions like the current source, current measurement, power, and measurement of a two-wire loop and DC mV source.

Features and Benefits:

Portable instrument for calibrating process devices and measuring process signals
Powers and measurement of a two-wire current loop
Adjustable 0mA -24mA current source
Adjustable -199.9mV to +1.99.9mVDC voltage source
Current calibrator drive loads up to 500 Ω
LCD display, max. display counts 1999
Operating temperature ranges between 0°C to 50°C

Applications:

Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation

Certifications

ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007

Datasheet

RS PRO Instruction manual
