RS PRO Handheld Capacitance Meter 20mF, LCR-метр

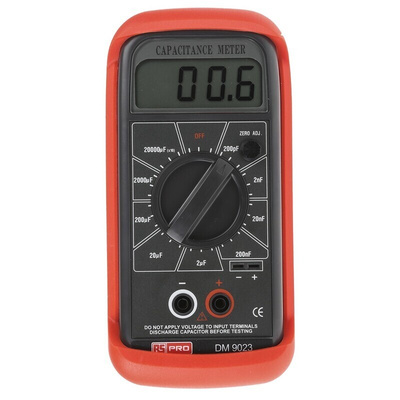

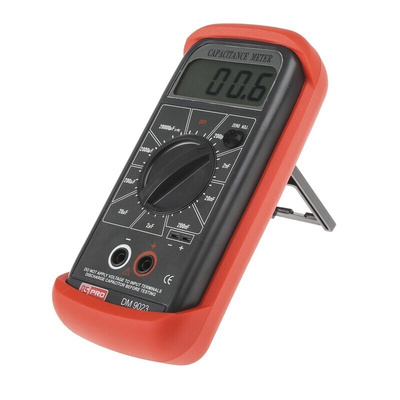

RS Pro DM-9023 Handheld Capacitance Meter with LCD

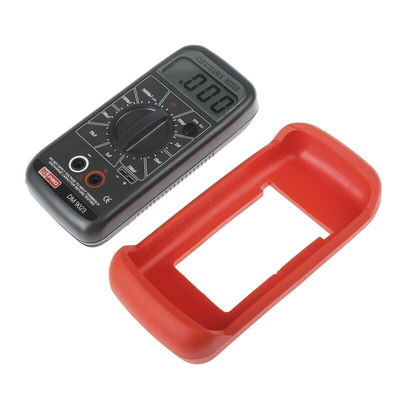

RS Pro DM-9023 LCR meter is a great value handheld capacitance meter which features an 18 mm high 2000-count LCD display. Ability to check tolerance, sort values, select precision values, unmarked capacitors measurement and switch or PCB layout capacitance. Lead capacitance may be nulled out with the instrument's front panel zero adjust facility. Also includes alligator clips, instructions, test lead set, rubber holster, 9v PP3, spare fuse 0.2A and alkaline battery.

Features and Benefits:

• Nine rotary switch selectable ranges, covering 200 μF to 20000 μF
• Accuracy 200 pF - 2000 μF ±1% FS ±1 digit, 20 kμF ±2% FS ±2 digits
• Low power consumption
• Up to 200 hours battery life
• Sampling rate 0.5 seconds
• High accuracy
• Test frequency 8Hz

Dimensions 185 x 87 x 39 mm

Areas of Application

Laboratory applications
Field service applications

Supplied with

instructions, test lead set, rubber holster, 9V PP3 alkaline battery

RS PRO Datasheet
