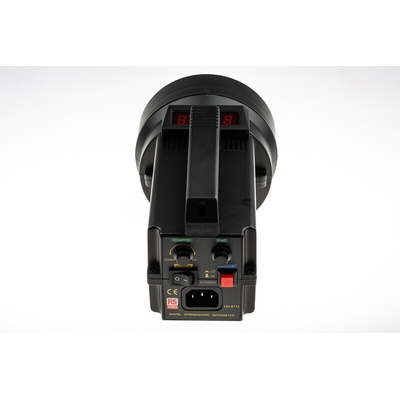

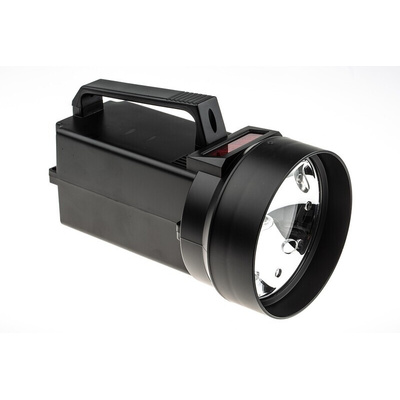

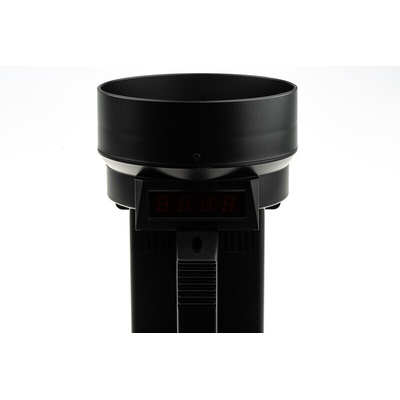

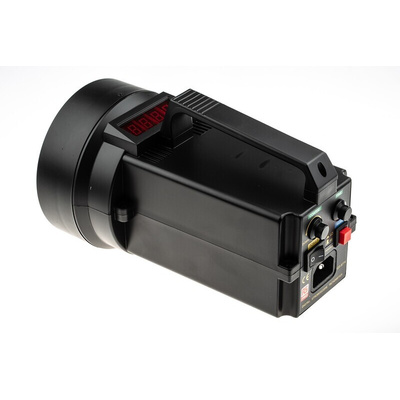

RS PRO DT-2239-2 (230V) Stroboscope, 10000rpm Max, ±0.05 % Accuracy, 1s Sample Time, Стробоскоп

Mains Powered Stroboscopic Tachometer

A stroboscope for determination of the rotation speed of shafts or motors. The Xenon tube flashrate can be set using a coarse/fine adjust potentiometer to match a rotating object, which will appear to freeze its motion. An electronic display indicates rpm and flashrate.

Manual adjust of flashrateDigital display of rpm/flashrateHand held or tripod mountable

A hand-held mains powered unit, which combines a stroboscope with a tachometer. It can be used to determine or monitor the rotational speed of motors, fans, pumps, conveyors, etc.The unit has a powerful Xenon flash unit which illuminates the part in question. The speed can be easily determined by adjusting the stroboscope flash rate, until the rotating part appears to be stationary. The rotational speed is indicated on the digital display.The unit may be either hand-held or mounted on a suitable tripod for free standing applications.

RS PRO DT-2239-2 (230 V) Stroboscope, Sample Time 1 s, Maximum Speed 10,000 rpm

This high-accuracy digital stroboscope from RS PRO is a mains-powered unit that combines a stroboscope with a tachometer. It's useful for determining rotational speeds in industrial environments and during machine maintenance.

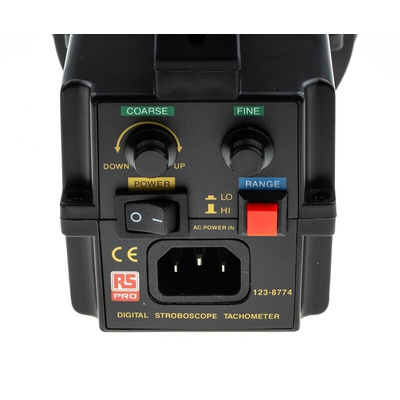

The stroboscopic tachometer uses a powerful Xenon flash unit to illuminate an object at a flash rate between 100 and 10,000 flashes per minute (FPM). To easily measure the rotational speed of an object, simply adjust the flash rate using the range switch and coarse and fine controls until the rotating part appears to be stationary. The rotational speed is indicated on the digital display as frames per minute (FPM), which are equal to the object's revolutions per minute (RPM). It can be used as a handheld unit or mounted on a tripod for freestanding applications.

You'll find this stroboscope useful for applications such as monitoring the rotational speed of motors, pumps or conveyors.

Features and Benefits

• Stroboscope combined with a tachometer
• Length of 120 mm
• Width of 210 mm
• Height of 120 mm
• Weight of 1 kg
• Xenon white-coloured flash
• Minimum flash rate/speed of 100 FPM/RPM
• Maximum flash rate/speed of 10000 FPM/RPM
• Sample time of 1 s
• Accuracy of ±0.05%
• Minimum operating temperature of 0°C
• Maximum operating temperature of +50°C
• Mains powered
