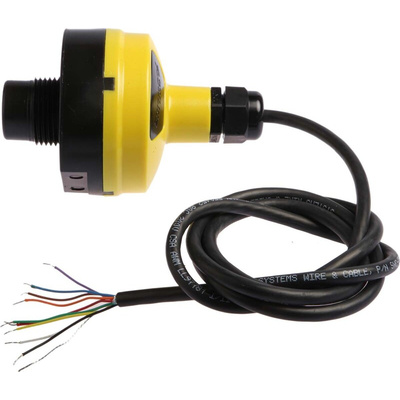

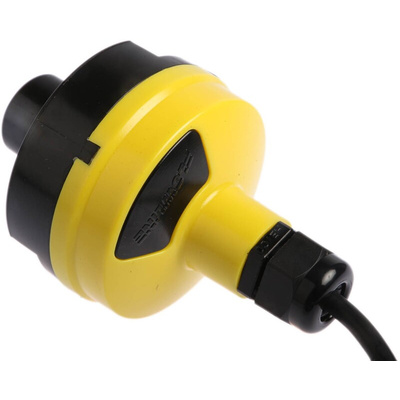

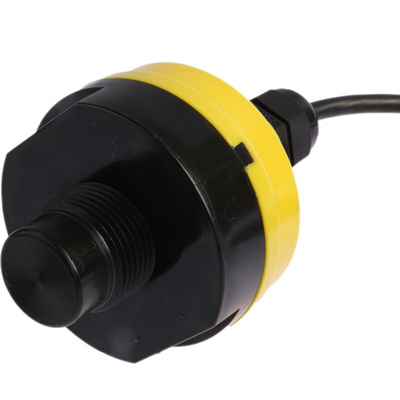

DL24-01, Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, PC Body

Flowline EchoPod DL24/34 Ultrasonic Level Sensor

Robust range of Ultrasonic level sensors provide the user with a non-contact continuous level solution. Thanks to the non-contact design, the Flowline EchoPod DL24/34 series is the ideal product for use within applications handling corrosive, sticky or dirty liquid. An embedded level controller within the DL14 series can reduce the price of installation, eliminating the cost of external hardware

Features and Benefits

Accurate measurement made possible thanks to automatic temperature compensation
Continuous non-contact measurement up to 49.2"
Optimised for small tank applications with a narrow 2" beam width and 2" short dead band
PVDF transducer and 6P Polycarbonate enclosure construction makes the EchoPod DL24/34 series suitable for corrosive applications

Quick & simple configuration via Flowline's Free WebCal Software & USB Adapter

Note

Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint & Commander

Flowline Level Sensor

The Flowline Ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3.0m) and output current rating ranging from 4mA to 20mA and is configured via our free webcal software. This level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower the cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids.
Note:
Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and Commander

Features and Benefits

Accurate measurement made possible because of automatic temperature compensation
Optimised for small tank applications with a narrow 2in beam width and 4in short dead band
PVDF transducer and 6P polycarbonate enclosure construction is suitable for corrosive applications
Four programmable relays for switch, pump or valve control and fail-safety
1 pump or valve with 3 alarms
2 pumps (lead-lag) with 2 alarms
2 pumps (duplexing) with 2 alarms
4 independent switch point alarms
Process mount is NPT
USB adapter wit fob

Applications

Tanks
Skids
IBC
Sumps and process tank level applications

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
