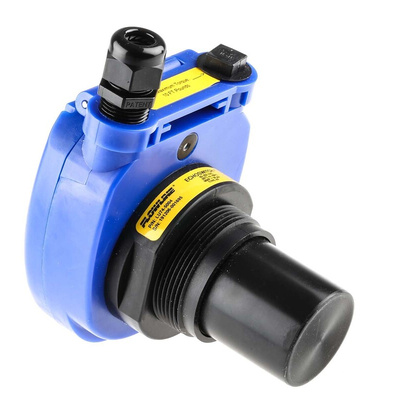

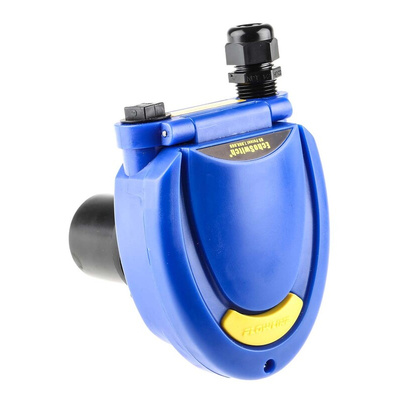

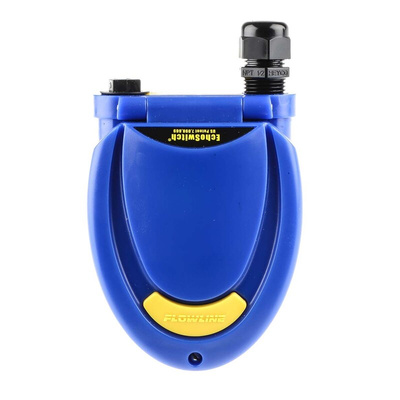

LU74-5004, Flowline EchoSwitch Series, Ultrasonic Level Switch Vertical Mounting Ultrasonic Level Sensor

Flowline Ultrasonic Level Switch

The Flowline Ultrasonic level sensor provides continuous level detection up to 26.2ft (8m) with 3 programmable relays for level switch or level control functions and a 4mA to 20mA signal output. This sensor is programmed via the integral push button display module. Each relay can be configured on a single set point (high-level alarm or low-level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve), duplex (two pumps) or triplex (three pumps) level control modes with selectable time delay and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids.
Note:
Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and Commander

Features and Benefits

Configuration is simple via an integral push button display module
Three programmable relays for switch, pump control and fail-safety
1 pump or valve with 2 alarms
2 pumps (lead-lag) with 1 alarms
2 pumps (duplexing) with 1 alarms
3 independent switch point alarms
LCD display indicates level height in engineering units and relay status
Narrow 2in or 3in beam width for applications with limited measurement space
Short 4in or 8in dead band maximizes the measurable filling capacity of the tank
PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids
Automatic temperature compensation for accurate measurement
Sensor range/size 5.5m (18.0ft)
Process mount: 2in NPT (2in G)
Maximum current of 20mA
Current rating of 2A

Applications

Tanks
Skids
IBC
Sumps and process tank level applications

Certifications

CE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
