4D Systems 4Duino-24 TFT LCD Colour Display / Touch Screen, 2.4in, 240 x 320pixels, Дисплей

4Duino-24 Touchscreen Display Module

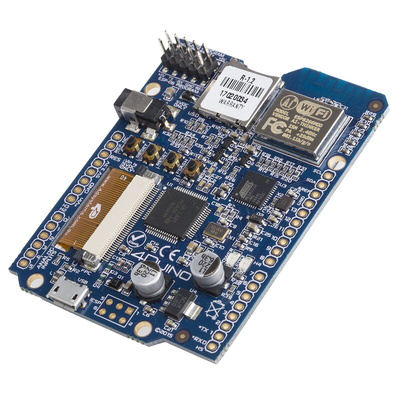

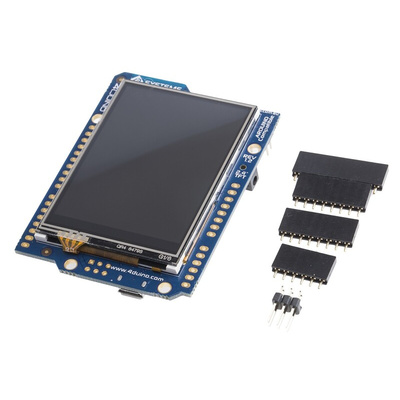

The 4Duino-24 is an Arduino™ compatible display module with a 240 x 320 resolution TFT LCD Display with Touchscreen and wireless communication. The 4Duino-24 can display full-colour images, animations, icons and video clips.

16MHz ATmega32u4 microcontroller with 32KB Flash memory, 2.5KB SRAM, 1KB EEPROM
2.4in QVGA resolution resistive-touch display module with PICASO GPU, 14KB Flash memory, 14KB SRAM
ESP8266 IEEE 802.11b/g/n WiFi module with 1MB Flash memory
20 x GPIO pins (including 7 x PWM outputs and 12 x analogue inputs)
MicroUSB connector for programming and power
MicroSD card slot for multimedia storage and data logging with DOS-compatible file access (FAT16 format)
2 x 3 way ICSP header for programming the microcontroller
2 x 5 way header for programming PICASO and ESP8266 via a 4D Systems Programming Cable or Adapter
Power supply +5Vdc barrel jack socket
Power supply: +4.0V to +5.5Vdc
Operating temperature range: -15 to +65°C
Dimensions: 72.8 x 53.3 x 14.6mm with Arduino Rev 3 Shield format

4D Systems LCD Touchscreens

4Duino 2.4in TFT LCD Display Module datasheet
