CleO35A, Bridgetek, 3.5in Arduino Compatible Display with Resistive Touch Screen

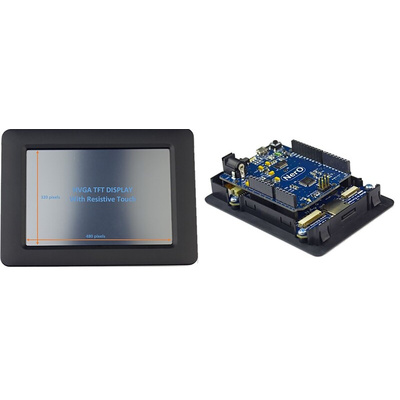

CleO 3.5in Touchscreen LCD for Arduino

The CleO graphics display panel allows easy development of Human-Machine Interfaces (HMI) based on an Arduino-format platform. Designed to work with an Arduino UNO R3 or compatible host processor board such as the NerO available from FTDI Chip.

3.5in 320 x 480pixel TFT LCD panel with resistive touchscreen
Landscape and portrait modes supported
Anti-Aliased graphics throughout for much finer image quality
Smooth animations at up to 60fps
Direct file transfers between microSD/eFlash and Graphics subsystem without using Host processor resources

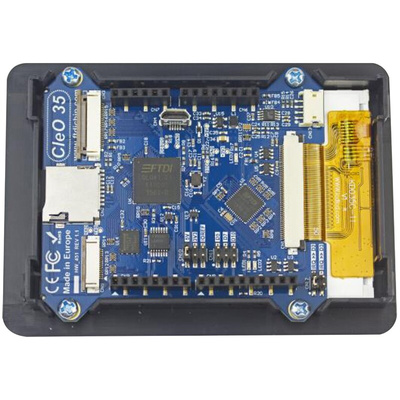

FT810 Embedded Video Engine (EVE) graphic controller
FT903 32-bit microcontroller
MicroSD card socket
8MB eFlash memory
USB DFU port for firmware updates
Camera interface via 24-pin 0.5mm pitch FFC/FPC, bottom-contact connector
Support for OmniVision OV2640 camera module or CleO-CAM1A camera
PWM audio supported with speaker amplifier
Ready to use in a panel mountable bezel
Operating temperature range: -20 to +70°C

Compatible Accessories
110-9118 NerO-LP1 Energy-efficient Arduino-format processor board
124-1039 CleO-CAM1 5Mpixel camera
124-1040 CleO-RIO1 Reverse-I/O pins Adapter Shield
124-1041 CleO-SPK1 0.5W Speaker
124-1042 MS-C6-8G MicroSD Flash card, 8GB, Class 6
124-1043 PSU-9V1A-MP 9V @ 1A DC Universal Power Adapter

Approvals

CE FCC
