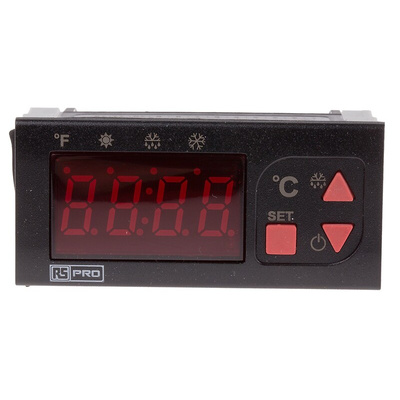

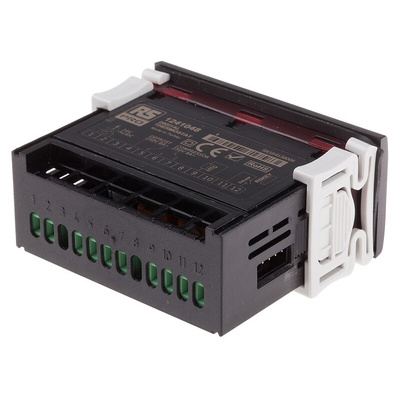

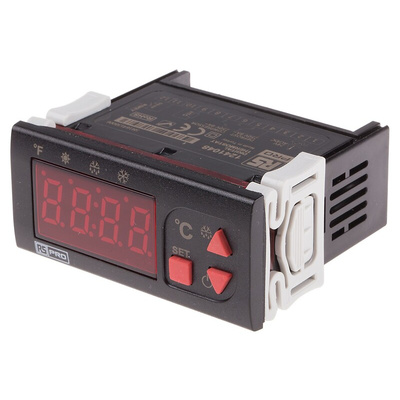

RS PRO Panel Mount On/Off Temperature Controller, 77 x 35mm 1 Input, 2 Output Relay, 24 V ac/dc Supply Voltage, Контроллер

RS PRO Panel Mounting On/Off Temperature Controller, 77 x 35 mm 1 Input, 2 Output Relay, 24 V AC/DC Supply Voltage

Regulate heat levels simply and precisely with this on/off thermostat controller from RS PRO. You can use it to set the temperature you need and it will turn off the output once the level has been exceeded. Once the temperature has dipped below the preset level, the controller will switch back on again.


This controller is small in size and can be panel-mounted easily in compact spaces. Its NTC (negative temperature coefficient) sensor input assures you accurate and reliable readings. There are two outputs for compressor, fan and defrost control, giving you flexible application options.


You can use this versatile component to adjust the time and intervals of defrosting as well as to set alarm limits. It's also possible to program upper and lower setpoint value limits using this device. Temperature controllers such as this one are typically found in a broad range of refrigeration applications.

Features and Benefits

• NTC sensor input type


• Ingress Protection (IP) ratings of IP20 and IP65


• Maximum storage temperature of +50°C


• Minimum storage temperature of 0ºC


• Panel mounting type


• One input


• Two outputs


• Relay output type


• Panel depth of 61 mm


• Operating temperature range of -60°C to +150ºC


• Size of 77 (length) x 35 mm (height)


• Supply voltage of 24 V AC


• Screw termination type
