RS PRO Panel Mount PID Temperature Controller, 96 x 48mm, 3 Output Relay, 24 V ac/dc Supply Voltage, Регулятор температуры

RS PRO Panel Mounting PID Temperature Controller, 96 x 48 mm, 3 Output Relay, 24 V AC/DC Supply Voltage

This reliable RS PRO device is a PID (proportional-integral-derivative) type of temperature controller you can use to efficiently control your industrial processes. It measures the actual temperature and compares it with the desired tone to ensure that the temperature is automatically adjusted as needed.

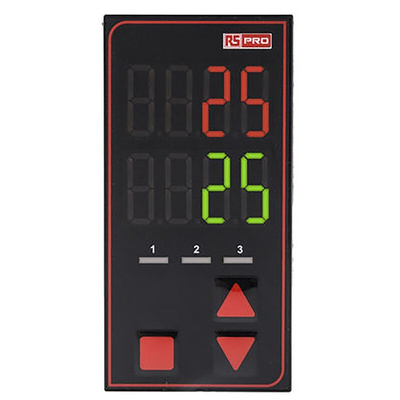

The controller's primary temperature control functions make it suitable for applications where you need heat or heating and cooling options. It has a clear light-emitting diode (LED) display with 18 mm digits for improved visibility and a menu that allows you to set up your top ten configuration parameters for ease of use.
The device features a standard input and three outputs with a choice of either relay or solid-state relay (SSR), giving you more flexibility. You'll find temperature controllers like this one used in packaging facilities and other industrial environments.

Features and Benefits

• PID function only
• Relay configurable outputs
• Dual four-digit LED display type
• Analogue, PT100 or Type B, C, J, K, L, N, R, S or T thermocouple input
• IP20 and IP65 rated
• Maximum operating temperature of +55°C
• Minimum operating temperature of 0°C
• Panel mounting type
• Three outputs
• Relay output type
• Panel depth of 67 mm
• Size of 96 (length) x 48 mm (width)
• Supply voltage of 24 V AC/DC
• Temperature range of +100°C to +1824°C (Type B), 0°C to +1399°C (Type N), 0°C to +1762°C (Type S), 0°C to +1795°C (Type R), 0°C to +2320°C (Type C), 0°C to +762°C (Type L), -199°C to +800°C (PT100)
