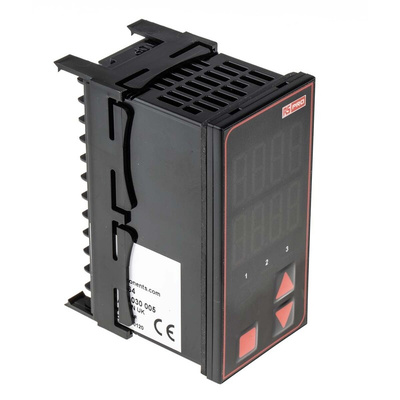

RS PRO Panel Mount PID Temperature Controller, 96 x 48 mm, 3 Output Relay, 110 → 240 V AC Supply Voltage

Regulate process temperatures with a high degree of accuracy using this PID (proportional integral derivative) temperature controller from RS PRO. An intelligent control loop mechanism keeps temperature fluctuations to a minimum, which is critical in many specialised industries.

While traditional controllers only switch on/off when the process temperature falls outside the desired range, these sophisticated PID controllers are able to offset heat fluctuations by using formulas to ensure a high level of stability.

The PID controller is easy to program and use, with a readable LED display, three-button menu and quick set-up menu. It's designed to be mounted on a panel, which makes connection and disconnection fuss-free.

This type of temperature controller is well-suited for applications requiring heat treatment of industrial parts, temperature-critical drying and conditioning of sheet materials. Part of the RS PRO range of quality components, it's been stringently tested for quality and safety.

Features and Benefits

• PID temperature controller
• Relay output type
• Three outputs
• Supply voltage of 110 to 240 V AC
• Measures 96 x 48 mm
• Panel depth of 67 mm
• Temperature range of +100°C to +1824°C (Type B thermocouple), 0°C to +1399°C (Type N), 0°C to +1762°C (Type S), 0°C to +1795°C (Type R), 0°C to +2320°C (Type C), 0°C to +762°C (Type L), -199°C to +800°C (PT100)

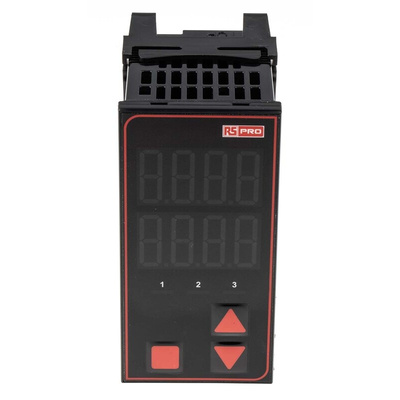

• Dual 4-digit LED display
• Set-up menu with 10 configuration parameters
• Suitable for applications where primary temperature controls (e.g. heat/cool) are needed
• Analogue input for thermocouple Type B, Type C, Type J, Type K, Type L, Type N, PT100, Type R, Type S and Type T
• Operating temperature range of 0°C to +55°C
• Panel mounting
• IP rating of IP20, IP65 (dust-tight, splash-proof)
• RoHS-compliant for restricted hazardous substances
