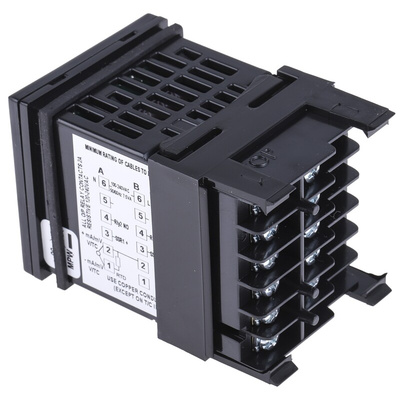

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, SSR, 110 → 240 V ac Supply Voltage, Регулятор температуры

RS PRO Panel Mounting PID Temperature Controller, 48 x 48 mm, 2 Output Relay, SSR, 110 to 240 V AC Supply Voltage

Need an easy-to-use temperature controller? You can use this RS PRO PID (proportional-integral-derivative) type to efficiently monitor and control your industrial processes and ensure the temperature is adjusted when it exceeds or goes below the preset point.
You can easily install the controller by mounting it to your panel. It has a clear LED display for improved visibility and a setup menu with the top ten configuration parameters, allowing you to quickly program it. It features a standard input and three outputs with a choice of either relay or solid-state relay (SSR), making it a versatile device. You can use this controller for applications where you need to use heat or heat/cool options. This type of temperature controller is commonly used in industrial settings such as packaging facilities.

Features and Benefits

• PID function only
• Relay and SSR configurable outputs

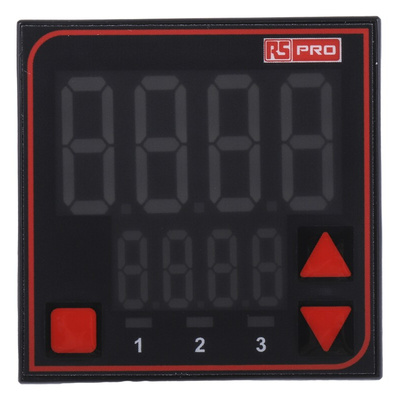

• Dual four-digit LED display type
• Analogue, PT100 and type B, C, J, K, L, N, R, S, T thermocouple input
• IP20 and IP65 rated
• Maximum operating temperature of +55°C
• Minimum operating temperature of 0°C
• Panel mounting type
• Two outputs
• Panel depth of 67 mm
• Size of 48 (length) x 48 mm (width)
• Supply voltage of 110 to 240 V AC
• Temperature range of +100°C to +1824°C (Type B), 0°C to +1399°C (Type N), 0°C to +1762°C (Type S), 0°C to +1795°C (Type R), 0°C to +2320°C (Type C), 0°C to 762°C (Type L), -199°C to +800°C (PT100)
