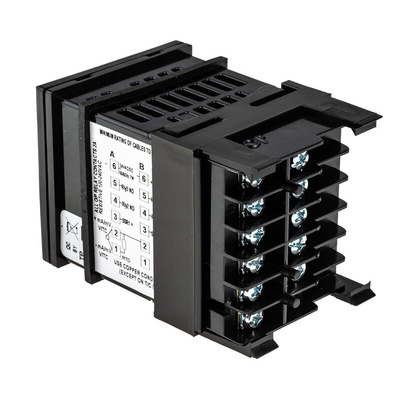

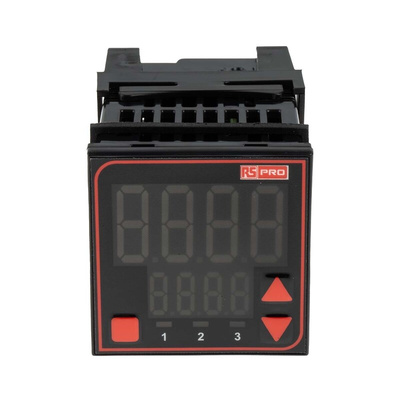

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm, 3 Output Relay, SSR, 24 V ac/dc Supply Voltage, Регулятор температуры

RS PRO Panel-mount PID Temperature Controller, 48 x 48 mm, 3 Output Relay, SSR, 24 V AC/DC Supply Voltage

This panel-mounted PID (proportional integral derivative) controller from RS PRO provides accurate and precise temperature checks using an exact control loop mechanism. It's well-suited to all kinds of industrial environments where it's essential that equipment temperatures remain stable.

PID controllers use feedback from a thermocouple to ensure that process temperatures remain constant as the user setpoint, preventing overshoots and lag in process temperatures.

This sophisticated temperature controller is designed for ease of use and trouble-free programming. Its clear LED display is easy to read and there's a simple set-up menu with 10 configuration parameters and three-button operation.

PID controllers are very efficient in their response to sudden fluctuations in temperature. This RS PRO-branded controller complies with EN 61326 on immunity and emissions regarding electromagnetic compatibility for electrical equipment. It also meets EN 61010-1 on the safety requirements for electrical equipment for measurement, control and laboratory use.

Features and Benefits

• PID temperature controller
• Analogue input for thermocouple Type B, Type C, Type J, Type K, Type L, Type N, Type R, Type S and Type T
• Relay or SSR output type
• Supply voltage of 24 V AC/DC
• 48 x 48 mm
• Panel depth of 67 mm
• Panel mounting
• Temperature range of -200°C to +2320°C, depending on thermocouple type
• Minimum operating temperature of 0°C
• Maximum operating temperature of +55°C
• Dual 4-digit LED display
• Setup menu with 10 configuration parameters
• Suitable for applications where primary temperature controls (e.g. heat/cool) are needed
• IP20- and IP65-rated as dust-tight and splash-proof
• Complies with EN 61326 (Susceptibility & Emissions)
• Complies with EN 61010-1 (Safety requirements for electrical equipment for measurement, control and laboratory use)
• PID function only

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
