RS PRO Panel Mount PID Temperature Controller, 48 x 48 mm, 3 Output Relay, SSR, 110 → 240 V AC Supply Voltage

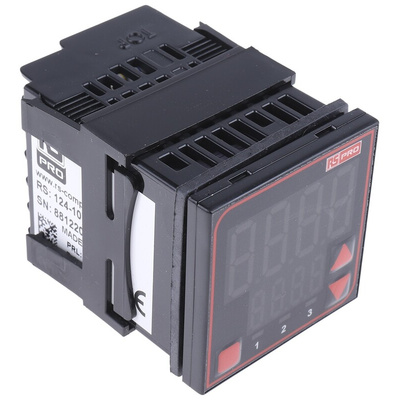

This RS PRO panel-mount PID controller (proportional integral derivative) offers you a more sophisticated temperature control than traditional tools. It's especially good at reacting to sudden heat fluctuations, making it well-suited to a range of industries where keeping equipment temperatures stable is critical.

Unlike standard controllers that carry out a simple on/off switching function, PID controllers use feedback from a thermocouple. This prevents overshoots and lag and means process temperatures stay constant at the user setpoint.

This temperature controller has three outputs with a choice of either relay or SSR (solid-state relay). It has a quick set-up menu with 10 configuration parameters. The user-friendly controller has a large, clear LED display and simple three-button operation.

As a quality RS PRO product, this controller has been stringently tested. It's IP65-rated as dust-tight and splash-proof and also meets the EN 61010-1 standard for safe electrical measuring and control equipment.

Features and Benefits

• PID temperature controller
• Three outputs
• Two process alarms
• Panel mounting
• Analogue input for thermocouple Type B, Type C, Type J, Type K, Type L, Type N, PT100, Type R, Type S and Type T
• Relay or SSR output type
• Supply voltage of 110-240 V AC
• Measures 48 x 48 mm
• Panel depth of 67 mm
• Temperature range of -200°C to 2320°C, depending on thermocouple type
• Minimum operating temperature of 0°C
• Maximum operating temperature of +55°C

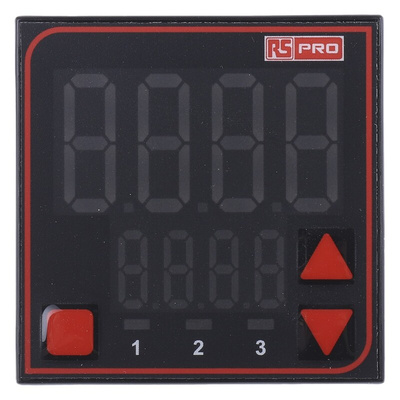

• Dual 4-digit LED display
• Setup menu with 10 configuration parameters
• Suitable for applications where primary temperature controls (e.g. heat/cool) are needed
• IP20- and IP65-rated as dust tight and splash proof
• Complies with EN 61326 (Susceptibility & Emissions)
• Complies with EN 61010-1 (Safety requirements for electrical equipment for measurement, control and laboratory use)
