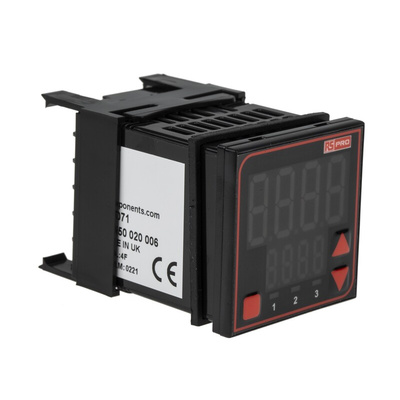

RS PRO Panel Mount PID Temperature Controller, 48 x 48mm, 3 Output Relay, SSR, 110 → 240 V ac Supply Voltage, Регулятор температуры

RS PRO Panel-mount PID Temperature Controller, 48 x 48 mm, 3 Output Relay, SSR, 110 → 240 V ac Supply Voltage

Looking for more sophisticated temperature control? This panel-mount PID controller (proportional integral derivative) from the RS PRO range uses a precise control loop mechanism to keep equipment temperatures stable.

Standard controllers perform a binary switching function (on/off), which can lead to overshoots and lag in process temperatures. PID controllers use feedback from a thermocouple instead, which keeps process temperatures consistent as the user setpoint.

This temperature controller is very easy to program and use. It has a large, clear LED display, a quick set-up menu and a simple three-button operation. A sturdy panel-mount provides versatile mounting possibilities and space-saving benefits.

As they're extremely effective at responding to sudden fluctuations, PID temperature controllers are widely used in all manner of industries. Built to IP20 and IP65 standards, this product is also RoHS-compliant, which means that it's protected against hazardous materials.

Features and Benefits

• Analogue input for thermocouple Type B, Type C, Type J, Type K, Type L, Type N, Type R, Type S and Type T
• Relay or SSR output type
• Supply voltage of 110-240 V ac
• 48 x 48 mm
• Panel depth of 67 mm
• Temperature range of -200°C to 2320°C, depending on thermocouple type
• Minimum operating temperature of 0°C
• Maximum operating temperature of +55°C

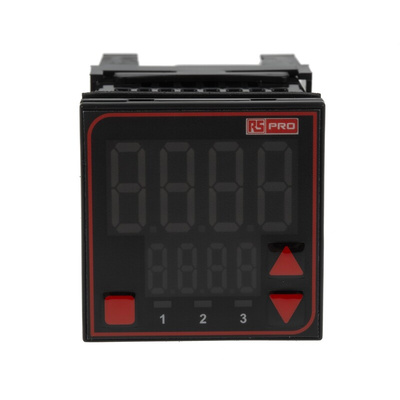

• Dual 4-digit LED display
• Setup menu with 10 configuration parameters
• Suitable for applications where primary temperature controls (e.g. heat/cool) are needed
• IP20- and IP65-rated
• PID Function Only

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The RS stock no.124-1071 has three outputs in this order; SSR, Relay, Relay.
