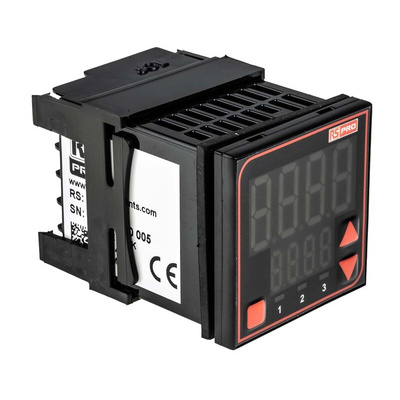

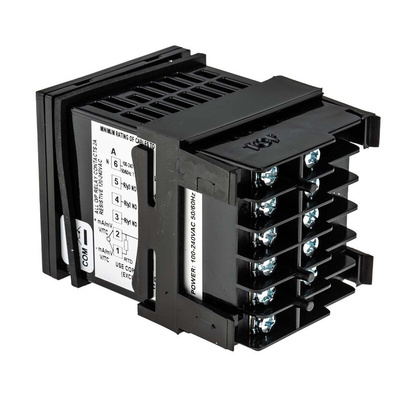

RS PRO Panel Mount PID Temperature Controller, 48 x 48 mm, 3 Output Relay, 110 - 240 V AC Supply Voltage

This panel mount PID (proportional integral derivative) controller from RS PRO offers a more advanced form of temperature control than basic devices. It's well-suited for applications requiring primary control functions, such as heat/cool or heat only.

Instead of using a simple on/off switching function to regulate temperatures like standard controllers, this PID controller takes feedback from a thermocouple and uses it to maintain process temperatures as close to the user setpoint as possible.

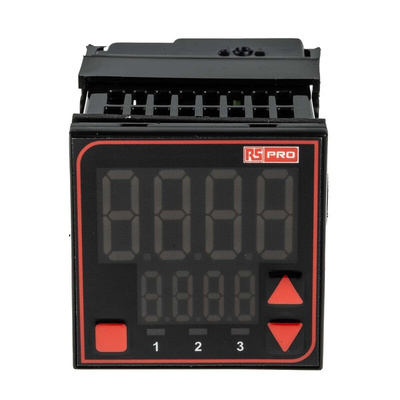

The temperature controller is easily programmed and simple to use. There's a large, clear LED display as well as a quick set-up menu and three-button operation. It can be mounted in a range of ways using the robust panel mount, which is also good if you're short on space.

PID temperature controllers are common in a wide range of industries, where their ability to react quickly to sudden temperature fluctuations is essential.

Features and Benefits

• PID temperature controller
• Analogue input for thermocouple Type B, Type C, Type J, Type K, Type L, Type N, Type R, Type S, Type T and PT100
• Relay output type
• Three outputs
• Universal input
• Supply voltage of 110-240 V AC
• Measures 48 x 48 mm
• Panel depth of 67 mm
• Panel mounting
• Temperature range of -200°C to +2320°C, depending on thermocouple type
• Minimum operating temperature of 0°C
• Maximum operating temperature of +55°C
• Dual 4-digit LED display
• Setup menu with 10 configuration parameters
• Suitable for applications where primary temperature controls (e.g. heat/cool) are needed
• IP20- and IP65-rated (dust tight, splash-proof)
• PID function only
