RS PRO Panel Mount Temperature Indicator, 77 x 35mm 1 Input, 230 V ac Supply Voltage, Контроллер

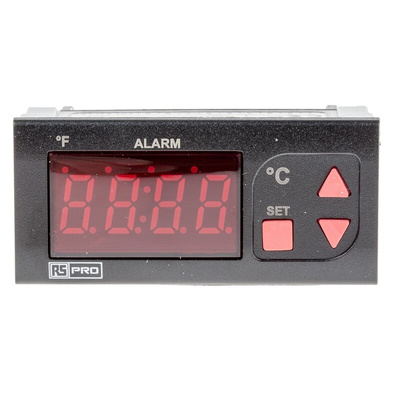

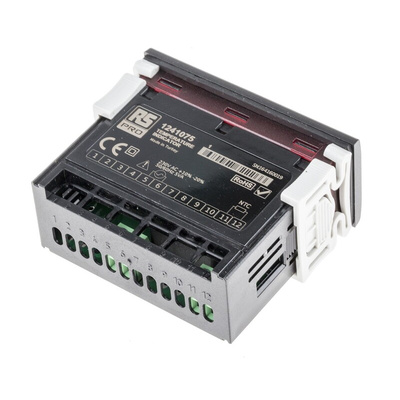

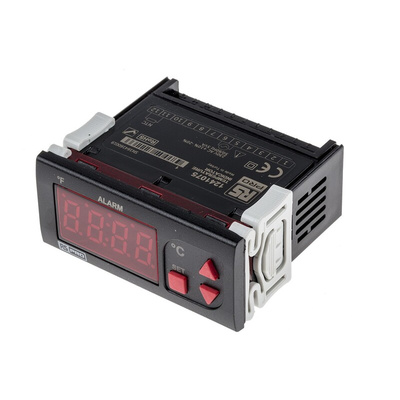

RS PRO Panel Mount Temperature Indicator, 77 x 35 mm 1 Input, 230 V AC Supply Voltage

Need a reliable temperature indicator to use in your industrial or commercial applications? Choose this RS PRO device. Its intuitive interface makes it easy to program, giving you maximum control and accuracy when measuring your process temperature.
The device features a negative temperature coefficient (NTC) sensor input, ensuring the measurements are accurate. The display is easy to read and allows you to display readings in both Centigrade and Fahrenheit for versatile use. The indicator also has options to store maximum and minimum measured values and set up limits for high- and low-temperature alarms, so you can use it for a variety of applications.
This indicator is easy to install by simply mounting it onto a panel. It has an Ingress Protection (IP) rating of IP65 for protection against dustand water sprays, making it a safe choice for use in harsh industrial environments.

Features and Benefits

• NTC probe input
• IP20 and IP65 rated
• Maximum storage temperature of +50°C
• Minimum storage temperature of 0°C
• Panel mounting type
• One input
• Panel depth of 61 mm
• Operating temperature range of -60°C to +150°C
• Size of 77 (length) x 35 mm (width)
• Supply voltage of 230 V AC
• Screw termination type
