RS PRO IDS2202A Digital Bench Oscilloscope, 2 Analogue Channels, 200MHz - UKAS Calibrated

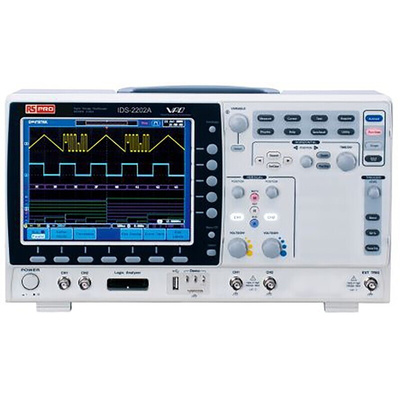

RS PRO IDS2202A Bench Digital Storage Oscilloscope, 200 MHz, 2 Channels

Use this RS PRO oscilloscope to measure changes in the voltage of an electrical signal over time. It visually displays electrical signals so you can evaluate and understand the behaviour of your electronic circuits.
The oscilloscope uses visual persistence oscilloscope (VPO) technology, meaning it applies a grayscale display of electric waveforms to distinguish between signals based on the frequency with which they occur. You can also identify the occurrence frequencies among various waveforms on the high-resolution thin-film-transistor liquid-crystal (TFT LCD) display by using different colour modes, ensuring easy-to-see and accurate readings.

Use the zoom feature and the play/pause button to navigate the waveform display with ease. The waveform update rate is extremely fast, enabling you to analyse inrush signals and elusive glitches in a high level of detail. You'll find this type of tool used in diagnostic, defect debugging and system development, as well as in electronic and electrical engineering.

Features and Benefits

• Bandwidth of 200 MHz


• Can interface


• Digital


• Dimensions of 380 (length) x 220 (width) x 145 mm (height)


• LCD display type


• Lic interface


• Maximum operating temperature of +50°C


• Minimum operating temperature of 0°C


• Maximum time base of 100 s/div


• Minimum time base of 1 ns/div


• Maximum vertical sensitivity of 10 V/div


• Minimum vertical sensitivity of 1 mV/div


• Two channels


• Digital storage


• Bench oscilloscope


• Europe, UK plug type


• Mains power source


• Record length of 2 M points


• Rise time of 1.75 ns


• Rs232 interface


• CAT I 300 V, CAT II 300 V safety category


• CAT I, CAT II safety category level


• Safety category voltage of 300 V


• Sample rate random of 2 GSa/s


• Screen size of 8 in


• SPI, UART, USB interface


• Vertical resolution of 8 bit


• Weight of 4.2 kg
