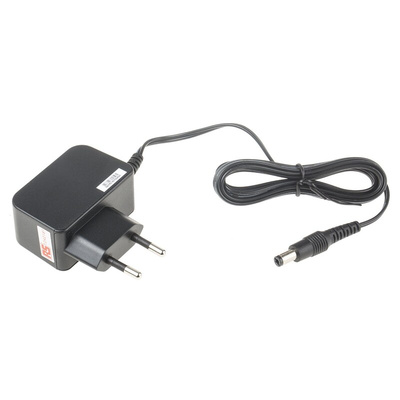

RS PRO 7.5W Plug-In AC/DC Adapter 12V dc Output, 630mA Output

RS PRO 7.5 W Plug In Power Supply 12 V DC, 630 mA, Level VI Efficiency, 1 Output Power Supply, Type C

This RS PRO 7.5 W plug-in power supply has a single DC output and comes with a two-pin, Type C plug that's suitable for European mains sockets. It's protected against overload and short circuits, and for greater safety it's double-insulated against electric shocks.
The unit has a centre positive output connector that works with many smaller electronic devices. To provide more choice when connecting to mains sockets, the supplied cable is 1.5 metres long.
As it meets the EU CoC (code of conduct) Version 5 Tier 2 standards for energy efficiency, the adapter uses little power when not connected to any equipment. You'll find this type of power supply in networking and communications, where it's often used to power devices such as tablets and smartphones.

Features and Benefits

• Switching adapter power supply


• Power rating of 7.5 W


• Output voltage of 12 V DC


• Input voltage of 100 to 240 V AC


• Output current of 630 mA


• Operating temperature of -10°C to +40°C


• Dimensions of 35.68 (length) x 17.25 (width) x 34.43 mm (depth)


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
