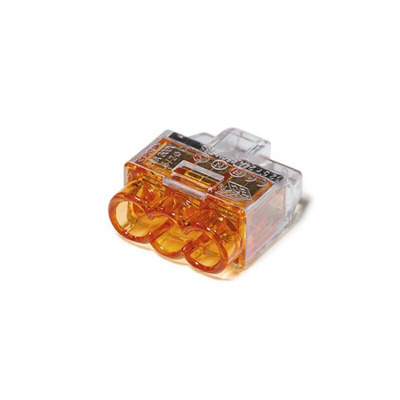

148-90037 HCPM-3-PC-CL/OG (100), HellermannTyton, HelaCon Plus Mini Wire Splice Connector 0.5 → 2.5 (Solid) mm², 1 → 2.5 (Stranded) mm²

1242526
Номер производителя: 148-90037 HCPM-3-PC-CL/OG (100)Производитель: HellermannTyton
Цена за 1 коробку (100 шт)
5577.00 руб. (С НДС) *
Количество 10+ 100+
Цена 5298.00 руб. 4182.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

HelaCon Plus Mini Push-In Connectors

HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications.

The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in spring technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.

Features and Benefits

40% smaller – space saving design
Low insertion force – Easy to use, saves time on installation
For professional cable connections in electrical installations
Easy access to voltage test entry and innovative port shape design
Correct installation can be visually checked through transparent housing
Different colour codes for easy identification of size
Allows different conductor diameters in each entry
Safe application, installation and maintenance
Max. current: 24 A
Max. voltage: 450 V
Wire range: 0.5 to 2.5 mm² solid wires; 1.0 to 2.5 mm² stranded
Stripping length: 11 mm
Flammability: UL94V0
Operating temperature: -30°C to +85 °C

Техническая спецификация
pdfDatasheet
Количество путей:
3
Размер провода:
0.5 → 2.5 (Solid) mm², 1 → 2.5 (Stranded) mm²
Серия:
HelaCon Plus Mini
